S series PTZ camera with AI

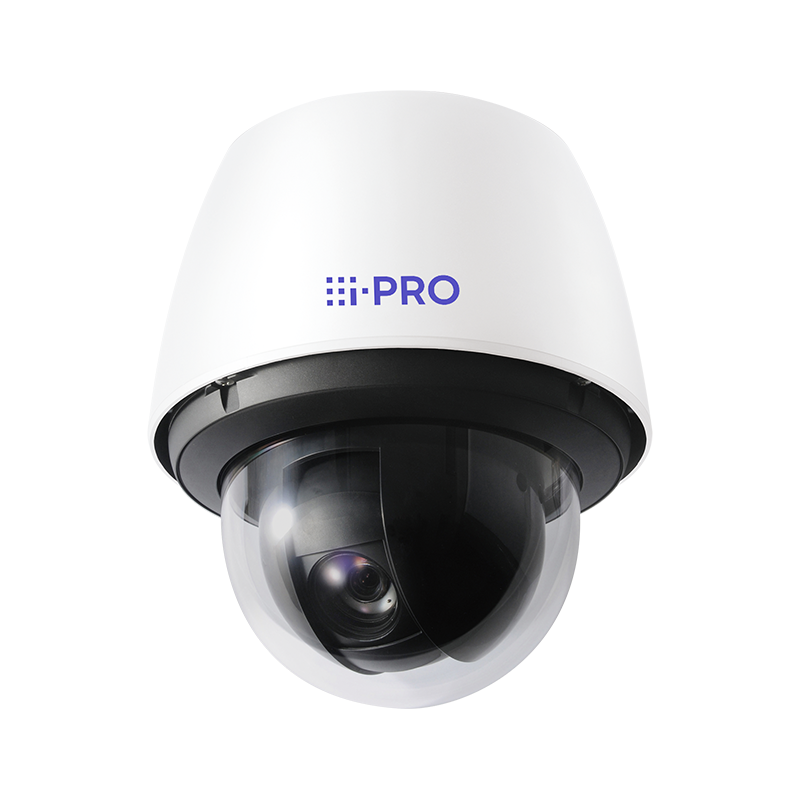

2MP (1080p) 40x Outdoor PTZ Network Camera

• 2MP (1080p) 1920x1080
• Intelligent Auto (with AI Engine)
• Color night vision (0.001 to 0.015 lx)
• Durable Pan/Tilt gear mechanism
• ClearSight Coating
• IP66, IP67, IK10 certified
• Heavy salt damage resistance specifications (ISO 14993 compliant)
• 40x optical zoom
• Super Dynamic 144dB
• Built-in FIPS 140-2 Level 3 Certified Secure Element
  (EdgeLock® SE050F  NXP® Semiconductors)
• NDAA Compliant
•

  Camera

  COMPONENT	SPECIFICATION
  Image Sensor	Approx. 1/2.8 type CMOS image sensor
  Scanning Area	5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)}
  Minimum Illumination	Color : 0.015 lx (50IRE, F1.6, 1/30s) Color : 0.001 lx (50IRE, F1.6, 16/30s) BW : 0.006 lx (50IRE, F1.6, 1/30s) BW : 0.0004 lx (50IRE, F1.6, 16/30s)
  White Balance	ATW1 / ATW2 / AWC
  Shutter Speed	[60 fps Mode] 1/60 Fix to 1/10000 Fix, [30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix
  Intelligent Auto	On / Off
  Super Dynamic	On / Off, the level can be set in the range of 0 to 31.
  Dynamic Range	Max.144 dB (Super Dynamic : On, Level 31)
  Adaptive Black Stretch	The level can be set in the range of 0 to 255.
  Back light compensation / High light compensation	BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31 (only when Super dynamic / Intelligent Auto : Off)
  Fog compensation	On / Off, The level can be set in the range of 0 to 8 (only when Intelligent auto / auto contrast adjust : Off)
  Maximum gain (AGC)	The level can be set in the range of 0 to 11.
  Color/BW (ICR)	Off / On / Auto1 / Auto2 / Auto3 (SCC)
  Digital Noise Reduction	The level can be set in the range of 0 to 255.
  Video Motion Detection (VMD)	On / Off, 4 areas available
  Scene Change Detection (SCD)	On / Off, 1 areas available
  Audio Detection	On / Off
  AI Sound Classification	Gunshot, Yell, Vehicle horn, Glass break
  AI Analytics	AI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection,AI Vehicle Detection, AI Non mask Detection, AI Occupancy Detection, AI Scene Change Detection For details : https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software 3rd party applications are also available. https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list
  Privacy Zone	On / Off, Up to 32 zones available
  VIQS	On / Off, Up to 8 zones available
  Image Stabilizer	On / Off (Built-in gyro sensor)
  Camera Title (OSD)	On / Off, Up to 40 characters (alphanumeric characters, marks)
  Focus Adjustment	Auto focus

  Lens

  COMPONENT	SPECIFICATION
  Optical zoom	40x (Motorized zoom / Motorized Focus)
  Extra zoom	Max. 60x (40 to 60x : When resolution is 1280 x 720
  Focal Length	4.25 - 170 mm {11/64 inches - 6-11/16 inches}
  Angular Field of View	[16 : 9 mode] Horizontal : 2.1° (TELE) – 65° (WIDE), Vertical : 1.2° (TELE) – 39° (WIDE) [ 4 : 3 mode] Horizontal : 1.6° (TELE) – 51° (WIDE), Vertical : 1.2° (TELE) – 39° (WIDE)
  Maximum Aperture Ratio	1 : 1.6 (WIDE) – 1 : 4.95 (TELE)
  Focus Range	3 m {118-7/64 inches} – ∞

  DORI

  COMPONENT	SPECIFICATION
  Detect (25ppm / 8ppf)	Wide: 60.3m / 197.8 ft, Tele: 2095.2 m / 6873.9 ft
  Observe (62.5ppm / 19ppf)	Wide: 24.1 m / 79.1 ft, Tele: 838.1 m / 2749.5 ft
  Recognize (125ppm / 38ppf)	Wide: 12.1 m / 39.6 ft, Tele: 419.0 m / 1374.8 ft
  Identify (250ppm / 76ppf)	Wide: 6.0m / 19.8 ft, Tele: 209.5 m / 687.4 ft

  System on Chip (SoC)

  COMPONENT	SPECIFICATION
  System on Chip (SoC)	Ambarella CV25M

  Adjusting Angle

  COMPONENT	SPECIFICATION
  Adjusting Angle	Horizontal : 360° Endless Panning, Vertical : -15° to +195°, Yaw : 0°

  Pan/tilt

  COMPONENT	SPECIFICATION
  Panning Range	360° Endless Panning
  Panning Speed	Manual: Approx. 0.065°/s – 150°/s Preset: Up to approx. 500°/s
  Tilting Range	Operational -15 – +195°
  Tilting Speed	Manual: Approx. 0.065°/s –150°/s Preset: Up to approx. 500°/s
  Preset Positions	256 positions
  Auto Mode	Auto track/ Auto pan/ Preset sequence/ Patrol
  Self Return	10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min

  Browser GUI

  COMPONENT	SPECIFICATION
  Camera Control	Brightness, AUX On / Off
  Audio	Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High
  GUI / Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
  Browser	Microsoft Edge, Firefox, Google Chrome

  Network

  COMPONENT	SPECIFICATION
  Network IF	10 Base-T / 100 Base-TX, RJ45 connector
  Resolution H.265/ H.264 JPEG (MJPEG)	[16 : 9 mode (60 fps mode)] , [16 : 9 mode (30 fps mode)], [16 : 9 mode (50 fps mode)] , [16 : 9 mode (25 fps mode)] 1920x1080, 1280x720, 640x360, 320x180 [4 : 3 mode (30 fps mode)], [4 : 3 mode (25 fps mode)] 1280x960, VGA, QVGA [4 : 3 mode (15 fps mode)], [4 : 3 mode (12.5 fps mode)] 2048x1536 , 1280x960, VGA, QVGA
  H.265/H.264	[Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast
  JPEG	[Image Quality] 10 steps
  Smart Coding	GOP (Group of pictures) control: Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/ Advanced(Fixed GOP 60s w/1s key-frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control) *Advanced and Frame rate control are only available with H.265. Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off
  Audio Compression	G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps AAC-LC : 64 kbps / 96 kbps / 128 kbps
  Audio Transmission Mode	Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
  Supported Protocol	IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP, NTCIP
  No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
  Secure	FIPS 140-2 level 3 Certified Secure Element (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed, User authentication, Host authentication, HTTPS, 802.1X Support, Data encryption
  SDXC/SDHC/SD Memory Card (Option)	H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SDXC/SDHC/SD Memory Card : microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB microSD memory card : 2 GB
  Mobile Terminal Compatibility	iPad, iPhone (iOS 8.0 or later), Android™ terminals
  ONVIF® Profile	G / M / S / T

  Alarm

  COMPONENT	SPECIFICATION
  Alarm Source	3 terminals input, VMD alarm, Command alarm, Audio detection alarm
  Alarm Actions	SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output

  Input/Output

  COMPONENT	SPECIFICATION
  Audio Input	ø3.5 mm stereo mini jack For microphone input : Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : –51 dB to –38 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance : Approx. 2 kΩ (unbalanced) Supply voltage : 2.5 V ±0.5 V For line input : Input level : Approx. –10 dBV
  Audio Output	ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 Ω (unbalanced) Output level : –20 dBV
  External I/O Terminals	ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)

  General

  COMPONENT	SPECIFICATION
  Safety	UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
  EMC	FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035
  Power Source and Power Consumption	AC24 V, PoE++ (IEEE802.3bt),PoE+ (IEEE802.3at) AC24 V, 3.4 A Approx. 53.3 W PoE++ DC 54 V 940 mA, Approx. 50.84 W(Class6 device) PoE+ DC 54 V 470 mA, Approx. 25.4 W(Class4 device)
  Ambient Operating Temperature	-50 °C to +60 °C (-58 °F to +140 °F) (AC24V, PoE++) -30 °C to +60°C {-22 °F to +140 °F)(PoE+ device) (Power On range : –30 °C to +60 °C {–22 °F to +140 °F}) Maximum temperature according to NEMA TS2(2.2.7) : 74 °C(165 °F)
  Ambient Operating Humidity	10 to 100 % (no condensation)
  Anti-Condensation System	Temish element + Heater + FAN + ROSAHL
  Water and Dust Resistance	IP66, IP67, IEC60529 measuring standard compatible, Type 4X(UL50E), NEMA 4X compliant
  Shock Resistance	IK10 (IEC 62262)
  Other standard support	NEMA TS2(2.2.7-2.2.9)
  Dimensions	ø229 mm x 278 mm (H) {ø9-1/32 inches x 10-15/16 inches (H)}
  Mass (Approx.)	Approx. 4.3 kg {9.48 lbs.}
  Finish	Main body : Heavy-duty salt damage-resistant coating Outer fixing screws : Stainless steel (Corrosion-resistant treatment) Dome section : Polycarbonate resin, Clear (with ClearSight coating)
  Other	Heavy salt damage resistance specifications (ISO 14993 compliant)
