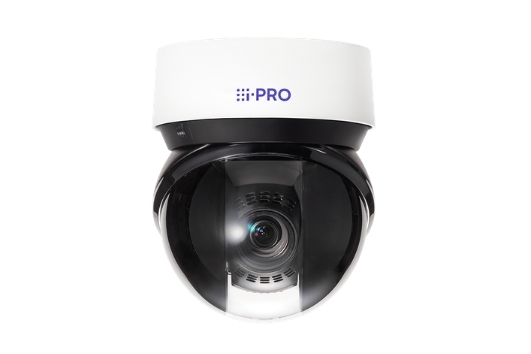

Camera I-PRO WV-S66300-Z4LV

2MP Outdoor 40x PTZ Network Camera with AI engine

• Độ phân giải 2MP, 40x PTZ camera
• Tích hợp đèn LED hồng ngoại
• Đạt chuẩn IP66, IK10
• Tích hợp AI
•

  COMPONENT	SPECIFICATION
  Image Sensor	Approx. 1/2.8 type CMOS image sensor
  Scanning Area	5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)}
  Minimum Illumination	Color : 0.011 lx (30IRE, F1.6, 1/30s, AGC:11)* 0.015 lx (50IRE, F1.6, 1/30s, AGC:11) 0.001 lx (50IRE, F1.6, 16/30s, AGC:11)* BW : 0 lx (50IRE, F1.6, 1/30s, AGC:11, IR LED: On) 0.006 lx (50IRE, F1.6, 1/30s, AGC:11) 0.0004 lx (50IRE, F1.6, 16/30s, AGC:11)* *Converted value
  White Balance	ATW1 / ATW2 / AWC
  Shutter Speed	[60fps mode] 1/60 Fix to 1/10000 Fix [50fps mode] 1/50 Fix to 1/10000 Fix
  Maximum shutter	60 fps/30 fps/15 fps mode: Max.1/4000s to Max.16/30s 50 fps/25 fps/12.5 fps mode: Max.1/4000s to Max.16/25s
  Intelligent Auto	On / Off
  Super Dynamic	On / Off, The level can be set in the range of 0 to 31.
  Dynamic Range	Max.144 dB (Super Dynamic : On, Level 31)
  Adaptive Black Stretch	The level can be set in the range of 0 to 255.
  Back Light Compensation/ High Light Compensation	BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31 (only when Super dynamic / Intelligent Auto :Off)
  Fog Compensation	On / Off, The level can be set in the range of 0 to 8 (only when Intelligent auto / auto contrast adjust : Off)
  Maximum Gain (AGC)	The level can be set in the range of 0 to 11.
  Color/BW (ICR)	Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
  IR LED Light	High/ Middle/ Low/ Off Maximum irradiation distance: 350 m {Approx. 1150 ft} (30IRE)* 250 m {Approx. 820 ft} (50IRE) *Converted value
  Digital Noise Reduction	The level can be set in the range of 0 to 255.
  Video Motion Detection (VMD)	On / Off, 4 areas available
  Scene Change Detection (SCD)	On / Off, 1 areas available
  Audio Detection	On / Off
  AI Sound Classification	Gunshot, Yell, Vehicle horn, Glass break
  AI Analytics	AI Video Motion Detection, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Non mask Detection (prior to V2.70), AI Occupancy Detection, AI Scene Change Detection
  Privacy Zone	On / Off, Up to 32 zones available
  VIQS	On / Off, Up to 8 zones available
  Image Stabilizer	On / Off (Built-in gyro sensor)
  Camera Title (OSD)	On / Off, Up to 40 characters (alphanumeric characters, marks)
  Optical zoom	40x (Motorized zoom / Motorized Focus)
  Extra zoom	Max.60x (40x-60x when resolution is 1280x720)
  Digital (electronic) Zoom	60x - 640x
  Focal length	4.25 - 170 mm {5/32 inches - 6-11/16 inches}
  Angular Field of View	[16 : 9 mode] Horizontal : 2.0° (TELE) – 65° (WIDE), Vertical : 1.2° (TELE) – 39° (WIDE)(TBD) [ 4 : 3 mode] Horizontal : 1.5° (TELE) – 51° (WIDE), Vertical : 1.2° (TELE) – 39° (WIDE)(TBD)
  Maximum Aperture Ratio	1 : 1.6 (WIDE) – 1 : 4.95 (TELE)
  Focus range	3.0 m {118-1/8 inches} –∞
  Aperture range	F1.6 - close
  Panning Range	360° Endless Panning
  Panning Speed	Manual ：Approx. 0.065 °/s – 150 °/s (PoE++), Approx. 0.065 °/s – 90 °/s (PoE+) Preset ：Up to 700 °/s (PoE++), Up to 90 °/s (PoE+)
  Tilting Range	Operational -20° – +90°
  Tilting Speed	Manual ：Approx. 0.065 °/s – 150 °/s (PoE++), Approx. 0.065 °/s – 90 °/s (PoE+) Preset ：Up to 500 °/s (PoE++), Up to 90 °/s (PoE+)
  Preset Positions	256 positions
  Auto Mode	Auto track/ Auto pan/ Preset sequence/ Patrol
  Self Return	10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min
  Active ClearSight	Yes
