New U-series compact network camera with enhanced functions and affordability

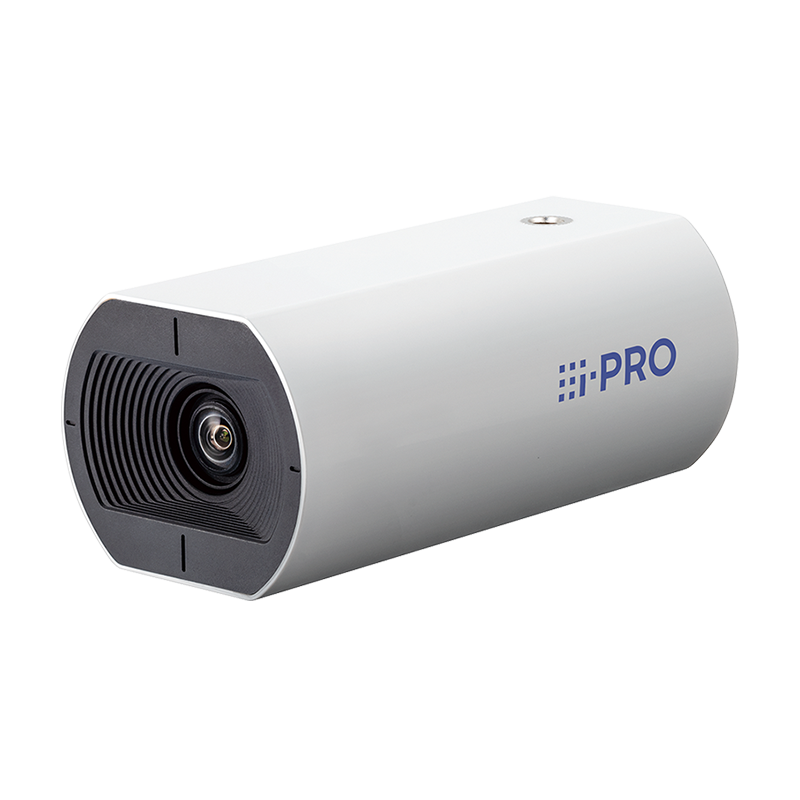

2MP (1080p) Varifocal Lens Indoor Box Network Camera

• 2MP (1080p) 1080p up to 30fps
• 2.5x built-in motorized zoom and motorized focus lens
• iA (intelligent Auto)
• Super Dynamic 120dB
• Color night vision (0.006 to 0.1 lx)
• H.265 Smart Coding
• Corridor mode (90 degrees or 270 degrees in image rotation)
• NDAA Compliant

  Camera

  COMPONENT	SPECIFICATION
  Image Sensor	Approx. 1/3 type CMOS image sensor
  Minimum Illumination	Color : 0.1 lx, BW: 0.04 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) Color : 0.006 lx, BW: 0.0025 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
  White Balance	ATW1/ ATW2/ AWC
  Maximum shutter	[30fps mode] Max. 1/10000 s to Max. 16/30 s [25fps mode] Max. 1/10000 s to Max. 16/25 s
  Intelligent Auto	On / Off
  Super Dynamic	On / Off, The level can be set in the range of 0 to 31.
  Dynamic Range	Max.120 dB (Super Dynamic: On, Level: 31)
  Adaptive Black Stretch	—
  Back Light Compensation/High Light Compensation	BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto: Off)
  Fog Compensation	On / Off (only when Intelligent auto / auto contrast adjust: Off)
  Maximum gain (AGC)	The level can be set in the range of 0 to 11.
  Color/BW (ICR)	Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC)
  Digital Noise Reduction	The level can be set in the range of 0 to 255.
  Video Motion Detection (VMD)	On / Off, 4 areas available
  Scene Change Detection (SCD)	On / Off, 1 areas available
  Privacy Zone	On / Off, Up to 8 zones available
  Image Rotation	0 ° (Off) / 90 °/ 180 ° (Upside-down)/ 270 °
  Camera Title (OSD)	On / Off, Up to 20 characters (alphanumeric characters, marks)

  Lens

  COMPONENT	SPECIFICATION
  Focal length	2.9 mm – 7.3 mm{1/8inches-9/32inches}
  Optical zoom	2.5x (Motorized zoom / Motorized focus)
  Extra optical zoom	2.5x - 3.8x (when resolution is 1280x720)
  Digital (electronic) zoom	Choose from 3 levels of x1, x2, x4
  Angular Field of View	[16 : 9 mode] Horizontal : 43° (TELE) – 100° (WIDE), Vertical : 24° (TELE) – 56° (WIDE) [ 4 : 3 mode] Horizontal : 32° (TELE) – 74° (WIDE), Vertical : 24° (TELE) – 56° (WIDE)
  Maximum Aperture Ratio	1 : 2.0 (WIDE) – 1 : 3.0(TELE)
  Focus range	1 m {39-3/8 inches} – ∞

  DORI

  COMPONENT	SPECIFICATION
  Detect (25ppm / 8ppf)	Wide: 35.5 m /116.6 ft, Tele: 98.5 m / 323.1 ft
  Observe (62.5ppm / 19ppf)	Wide: 14.2 m / 46.6 ft, Tele: 39.4 m / 129.2 ft
  Recognize (125ppm / 38ppf)	Wide: 7.1 m / 23.3 ft, Tele: 19.7 m / 64.6 ft
  Identify (250ppm / 76ppf)	Wide: 3.6 m / 11.7 ft, Tele: 9.8 m / 32.3 ft

  Browser GUI

  COMPONENT	SPECIFICATION
  Camera Control	Brightness
  GUI / Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

  Network

  COMPONENT	SPECIFICATION
  Network IF	10Base-T / 100Base-TX, RJ45 connector
  Resolution H.265/H.264	[16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180 [ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA
  H.265/ H.264	[Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast / Multicast [Max. frame rate for each stream] Stream(1) : 1920x1080(30fps) / 1280x720(30fps) / 1600x1200(30fps) Stream(2) : 640x360(30fps) / 1280x720(30fps) / 640x480(30fps) Stream(3) : Off / Off / Off JPEG(1) : 1920x1080(1fps) / 1920x1080(1fps) / 1600x1200(1fps) JPEG(2) : 1280x720(1fps) / 1280x720(1fps) / 1280x960(1fps)
  JPEG	[Image Quality] 10 steps
  Smart Coding	GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off * Frame rate control and Advanced are only available with H.265. AUTO VIQS: On/ Off
  Audio Compression	—
  Audio Transmission Mode	—
  Supported Protocol	IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP,SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP,DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP
  No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
  Secure	Device Certificate GlobalSign® pre-installed, User authentication,Host authentication, HTTPS, 802.1X Support, Data encryption
  SDXC/SDHC/SD Memory Card	H.265/H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC Compatible SDXC/SDHC/SD Memory Card : microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB microSD memory card: 2 GB
  Mobile Terminal Compatibility	iPad, iPhone, AndroidTM terminals
  ONVIF® Profile	G / S / T

  Alarm

  COMPONENT	SPECIFICATION
  Alarm Source	VMD alarm, SCD alarm, Command alarm
  Alarm Actions	SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output

  Input/Output

  COMPONENT	SPECIFICATION
  Monitor Output (for Adjustment)	—
  Audio input	—
  Audio Output	—
  External I/O Terminals	—

  General

  COMPONENT	SPECIFICATION
  Safety	UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
  EMC	FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
  Power Source and Power Consumption	PoE (IEEE802.3af compliant) Device: DC48 V 90 mA, Approx. 4.3 W (Class 2 device)
  Ambient Operating Temperature	-10 °C to +50 °C (+14 °F to +122 °F) {Power On range: 0 °C to +50 °C (+32°F to +122 °F)}
  Ambient Operating Humidity	10 to 90 % (no condensation)
  Dimensions *Installing using the base bracket	59 mm (W) x 49 mm (H) x 116 mm (D) {2-5/16 inches (W) x 1-15/16 inches (H) x 4-9/16 inches (D)} (excluding side cover)
  Mass (approx.)	155 g { 0.34 lbs.}
  Finish	Main body : PC / ABS resin, i-PRO white
