New U-series compact network camera with enhanced functions and affordability

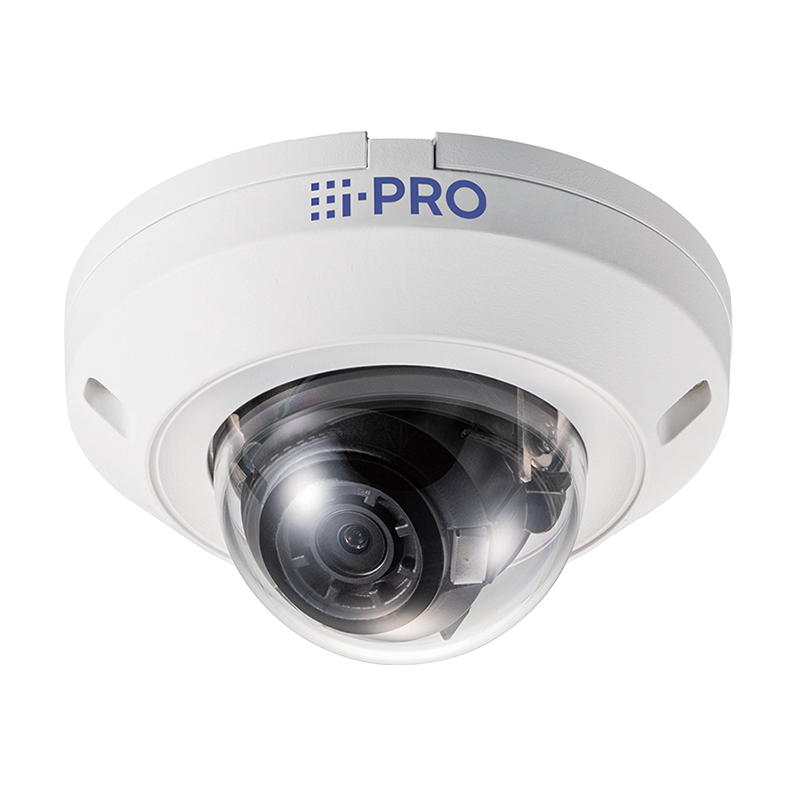

4MP Outdoor Dome Network Camera

• 2688×1520 pixel image up to 30fps
• iA (intelligent Auto)
• Super Dynamic 102dB
• Color night vision (0.019 to 0.3 lx)
• H.265 Smart Coding
• Corridor mode (90 degrees or 270 degrees in image rotation)
• Built-in IR LED
• NDAA Compliant
•

  Camera

  COMPONENT	SPECIFICATION
  Image Sensor	Approx. 1/2.7 type CMOS image sensor
  Effective pixels	Approx. 5.2 megapixels, 2688(H)×1944(V)
  Minimum Illumination	Color : 0.3 lx, BW: 0.12 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) BW : 0 lx (50IRE, F2.0, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit) Color : 0.019 lx, BW: 0.0075 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
  White Balance	ATW1/ ATW2/ AWC
  Maximum Shutter	[30fps mode] Max. 1/10000 s to Max. 16/30 s [25fps mode] Max. 1/10000 s to Max. 16/25 s
  Intelligent Auto	On / Off
  Super Dynamic	On / Off, the level can be set in the range of 0 to 31.
  Dynamic Range	Max.102 dB (Super Dynamic: On, Level: 31)
  Adaptive Black Stretch	The level can be set in the range of 0 to 255.
  Back Light Compensation/High Light Compensation	BLC/ HLC/ Off, The level can be set in the range of 0 to 31. The level can be set in the range of 0 to 31. (only when Super Dynamic/ Intelligent auto: Off)
  Fog Compensation	On / Off, The level can be set in the range of 0 to 8. (only when Intelligent auto / auto contrast adjust: Off)
  Maximum Gain (AGC)	The level can be set in the range of 0 to 11.
  Color/BW (ICR)	Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)
  IR LED Light	High/ Middle/ Low/ Off Maximum irradiation distance: 20 m {Approx. 65 ft}
  Digital Noise Reduction	The level can be set in the range of 0 to 255.
  Video Motion Detection (VMD)	On / Off, 4 areas available
  Scene Change Detection(SCD)	On / Off, 1 areas available
  Privacy Zone	On / Off (up to 8 zones available)
  VIQS	On / Off, Up to 8 zones available
  Image Rotation	0° (Off)/ 90°/ 180° (Upside-down)/ 270°
  Camera Title (OSD)	On / Off, Up to 20 characters (alphanumeric characters, marks)

  Lens

  COMPONENT	SPECIFICATION
  Focal Length	3.2 mm{1/8 inches}
  Optical Zoom	1x
  Extra optical zoom	1.0x - 1.3x(when resolution is 1920x1080)
  Digital (electronic) zoom	Choose from 3 levels of x1, x2, x4
  Angular Field of View	[16 : 9 mode] *[4:3 mode] is not supported. Horizontal : 100°, Vertical : 54°
  Maximum Aperture Ratio	1 : 2.0
  Focusing Range	1 m {39-3/8 inches} – ∞

  DORI

  COMPONENT	SPECIFICATION
  Detect (25ppm / 8ppf)	43.0 m / 141.0 ft
  Observe (62.5ppm / 19ppf)	17.2 m / 56.4 ft
  Recognize (125ppm / 38ppf	8.6 m / 28.2 ft
  Identify (250ppm / 76ppf)	4.3 m / 14.1 ft

  Adjusting Angle

  COMPONENT	SPECIFICATION
  Adjusting Angle	Horizontal (PAN) angle: -175 °– +175 °, Vertical (TILT) angle: -30 °– +80 ° Azimuth (YAW) angle: ±100°

  Browser GUI

  COMPONENT	SPECIFICATION
  Camera Control	Brightness
  GUI / Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

  Network

  COMPONENT	SPECIFICATION
  Network IF	10Base-T / 100Base-TX, RJ45 connector
  Resolution H.265/H.264	[16:9 mode(2688x1520 30fps mode)], [16:9 mode(2688x1520 25fps mode)] 2688×1520, 1920×1080, 640×360, 320×180 [16:9 mode(30fps mode)], [16:9 mode(25fps mode)] 2560×1440, 1920×1080, 640×360, 320×180 *[4:3 mode] is not supported.
  H.265/H.264	[Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port(AUTO) / Unicast port(MANUAL) / Multicast [Max. frame rate foreach stream] Stream(1) : 2688x1520(30fps) / 2560x1440(30fps) / 1920x1080(30fps) Stream(2) : Off / 640x360(30fps) / 1920x1080(30fps) Stream(3) : Off / Off / 640x360(10fps) JPEG(1) : 2560x1440(1fps) / 2560x1440(1fps) / 2560x1440(1fps) JPEG(2) : 1920x1080(1fps) / 1920x1080(1fps) / 1920x1080(1fps)
  JPEG	[Image Quality] 10 steps
  Smart Coding	GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off *Frame rate control and Advanced are only available with H.265. AUTO VIQS: On/ Off
  Audio Compression	-
  Audio Transmission Mode	-
  Supported Protocol	IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP,v1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ,MQTT,LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ,MQTT,LLDP
  No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
  Secure	Device Certificate GlobalSign® pre-installed, User authentication,Host authentication, HTTPS, 802.1X Support, Data encryption
  SDXC/SDHC/SD Memory Card (Option)	H.265 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC Compatible SDXC/SDHC Memory Card: microSDXC memory card : 64 GB, 128GB, 256GB, 512GB microSDHC memory card : 4GB, 8GB, 16GB, 32GB microSD memory card : 2GB
  Mobile Terminal Compatibility	iPad, iPhone, AndroidTM terminals
  ONVIF® Profile	G / S / T

  Alarm

  COMPONENT	SPECIFICATION
  Alarm Source	VMD alarm, SCD alarm, Command alarm
  Alarm Actions	SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, TCP alarm notification output

  Input/Output

  COMPONENT	SPECIFICATION
  Monitor Output (for Adjustment)	-
  Audio input	-
  Audio Output	-
  External I/O Terminals	-

  General

  COMPONENT	SPECIFICATION
  Safety	UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
  EMC	FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
  Power Source and Power Consumption	PoE (IEEE802.3af compliant) Device: DC48 V 110 mA, Approx. 5.3 W (Class 2 device)
  Ambient Operating Temperature	-30 °C to +50 °C (-22 °F to +122 °F) {Power On range: -20 °C to +50 °C (-4°F to +122 °F)}
  Ambient Operating Humidity	10 to 100 % (no condensation)
  Anti-Condensation System	Temish element
  Water and Dust Resistance	IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant
  Shock Resistance	IK10 (IEC 62262)
  Wind Resistance	Up to 40 m/s {approx. 89 mph}
  Dimensions	ø109 mm (W) x 62 mm (H) {ø4-9/32 inches × 2-7/16 inches (H)} Dome radius 30.5 mm {1-3/16 inches}
  Mass (Approx.)	270 g {0.60 lbs.}
  Finish	Main body : Aluminum die cast / Polycarbonate resin, i-PRO white Outer fixing screws : Stainless steel (Corrosion-resistant treatment) Dome cover : Polycarbonate resin, Clear
