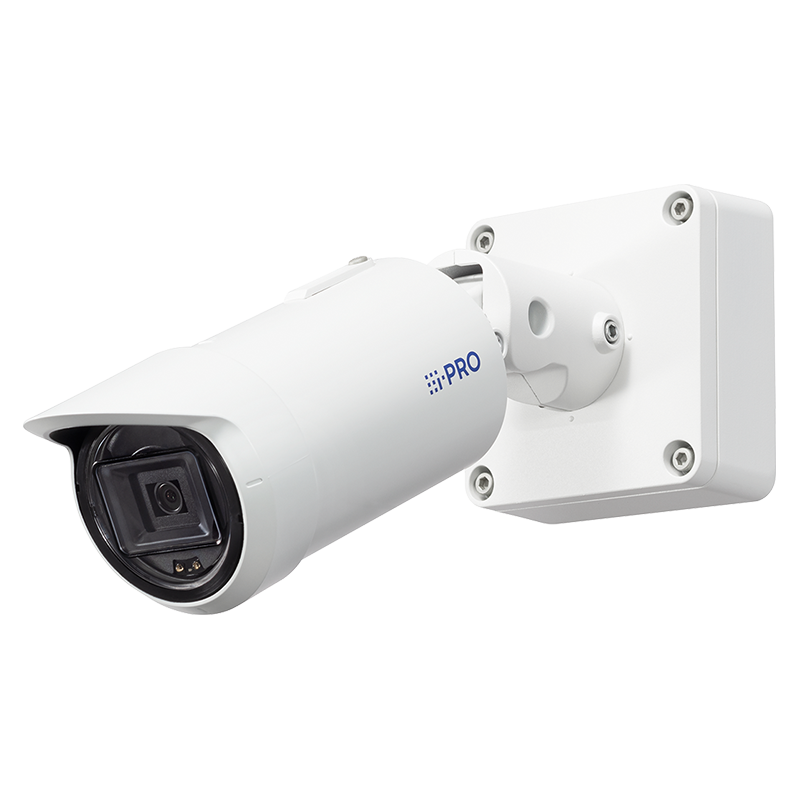

WV-S15500-F6L

Liên hệ

Loại sản phẩm: Camera giám sát

Hãng sản xuất: iPRO

Mô tả WV-S15500-F6L

S-series High resolution Network camera with AI engine

5MP Outdoor Bullet Network Camera

  • 5MP
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 132dB
  • Color night vision (0.08 to 0.11 lx)
  • Smart Coding (with AI Engine)
  • Built-in IR LED
  • IK10 Vandal Resistant
  • Built-in FIPS 140-2 Level 3 Certified Secure Element
    (EdgeLock® SE050F  NXP® Semiconductors)
  • NDAA Compliant
  • https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ia_intelligent_auto_mode.png https://i-pro.com/products_and_solutions/sites/default/files/2022-04/easy_installation.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ai_artificial_intelligence.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/onvif_profile_s_g_t.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/h265_h264_jpeg.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ip66_standard.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ir_led.jpg

    Camera

    COMPONENT SPECIFICATION
    Image Sensor Approx. 1/2.8 type CMOS image sensor
    Scanning Area 5.12 mm (H)×3.84 mm (V)
    {3/16 inches (H) × 5/32 inches (V)}
    Minimum Illumination Color : 0.08 lx (30IRE, F1.6, 1/30s)
    Color : 0.11 lx (50IRE, F1.6, 1/30s)
    BW : 0.07 lx (50IRE, F1.6, 1/30s)
    BW : 0 lx (50IRE, F1.6, 1/30s with IR LED)
    White Balance ATW1 / ATW2 / AWC
    Shutter Speed [30 fps] 1/30 Fix to 1/10000 Fix
    [25 fps] 1/25 Fix to 1/10000 Fix
    Intelligent Auto On / Off
    Super Dynamic On / Off, The level can be set in the range of 0 to 31.
    Dynamic Range Max.132 dB (Super Dynamic : On, Level 31)
    Adaptive Black Stretch The level can be set in the range of 0 to 255.
    Back Light Compensation/High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off
    (only when Super dynamic / Intelligent Auto : Off)
    Fog Compensation On / Off (only when Intelligent auto / auto contrast adjust : Off)
    Maximum Gain (AGC) The level can be set in the range of 0 to 11.
    Color/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
    IR LED Light High / Middle / Low / Off,
    Maximum irradiation distance : 45 m {Approx. 148 ft} (30IRE)
    30 m {Approx. 98 ft} (50IRE)
    Digital Noise Reduction The level can be set in the range of 0 to 255.
    Video Motion Detection (VMD) On / Off,
    4 areas available
    Scene Change Detection (SCD) On / Off,
    1 areas available
    Audio Detection On / Off
    AI Sound Classification Gunshot, Yell, Vehicle horn, Glass break
    AI Analytics AI Video Motion Detection, AI Privacy Guard, AI Face Detection,
    AI People Detection, AI Vehicle Detection,
    AI Non mask Detection, AI Occupancy Detection, AI Scene Change Detection

    For details :
    https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software
    3rd party applications are also available.
    https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list
    Privacy Zone On / Off,
    Up to 8 zones available
    VIQS On / Off,
    Up to 8 zones available
    Image Rotation 0 ° / 90 ° / 180 ° / 270 °
    Camera Title (OSD) On / Off,
    Up to 40 characters (alphanumeric characters, marks)
    Focus Adjustment Auto focus

    Lens

    COMPONENT SPECIFICATION
    Optical zoom 1 x
    Extra zoom 1x - 3x (when resolution is 640 x 360)
    Focal length 6.1 mm {1/4 inches}
    Angular Field of View [16 : 9 mode]
    Horizontal : 49 °, Vertical : 27 °
    [ 4 : 3 mode]
    Horizontal : 49 °, Vertical : 37 °
    Maximum Aperture Ratio 1 : 1.6
    Focus range 4.0 m {157-15/32 inches} - ∞

    DORI

    COMPONENT SPECIFICATION
    Detect (25ppm / 8ppf) 134.8 m / 442.3 ft
    Observe (62.5ppm / 19ppf) 53.9 m / 176.9 ft
    Recognize (125ppm / 38ppf) 27 m / 88.5 ft
    Identify (250ppm / 76ppf) 13.5 m / 44.2 ft

    System on Chip (SoC)

    COMPONENT SPECIFICATION
    System on Chip (SoC) Ambarella CV22

    Adjusting Angle

    COMPONENT SPECIFICATION
    Ceiling mounting Horizontal : ±180 ° (PAN rotation part)
    Vertical : 0 ° to 100 ° (TILT rotation part)
    Yaw : –190 ° to +100 ° (YAW rotation part)
    Wall mounting Horizontal : ±100 ° (TILT rotation part)*
    Vertical : ±100 ° (TILT rotation part)*
    Yaw : –190 ° to +100 ° (YAW rotation part)
    * You can change between horizontal and vertical angels by adjusting the PAN rotation part.

    Browser GUI

    COMPONENT SPECIFICATION
    Camera Control Brightness, AUX On / Off
    Audio Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High
    Audio Output : On / Off Volume adjustment : Low / Middle / High
    GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
    Browser Microsoft Edge, Firefox, Google Chrome

    Network

    COMPONENT SPECIFICATION
    Network IF 10Base-T / 100Base-TX, RJ45 connector
    Resolution H.265/ H.264/ JPEG (MJPEG) [16 : 9 mode (30 fps mode)][16 : 9 mode (25 fps mode)]
    3072x1728/2560x1440/1920x1080/1280x720/640x360/320x180
    [4 : 3 mode (30 fps mode)][4 : 3 mode (25 fps mode)]
    3072x2304/2560x1920/1280x960/800x600/VGA/400x300/320x240
    H.265/H.264 [Transmission Mode]
    Constant bit rate / VBR / Frame rate / Best effort
    [Transmission Type]
    Unicast port (AUTO) / Unicast port (MANUAL) / Multicast
    JPEG [Image Quality]
    10 steps
    Smart Coding GOP (Group of pictures) control:
    Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/
    Advanced(Fixed GOP 60s w/1s key-frame)/
    Frame rate control (Variable GOP 4s-16s with frame rate control)
    *Advanced and Frame rate control are only available with H.265.
    Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off
    Audio Compression G.726 (ADPCM) : 16 kbps / 32 kbps
    G.711 : 64 kbps
    AAC-LC : 64 kbps / 96 kbps / 128 kbps
    Audio Transmission Mode Off / Mic (Line) input / Audio output / Interactive (Half duplex) /
    Interactive (Full duplex)
    Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3,
    DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP
    IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP,
    SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP,
    ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP
    No. of Simultaneous Users Up to 14 users (Depends on network conditions)
    Secure FIPS 140-2 level 3 Certified Secure Element (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed,
    User authentication, Host authentication, HTTPS, 802.1X Support, Data encryption
    SDXC/SDHC/SD Memory Card H.265 / H.264 recording :
    Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
    JPEG recording :
    Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
    Compatible SDXC/SDHC/SD Memory Card :
    microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB
    microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB
    microSD memory card : 2 GB
    Mobile Terminal Compatibility iPad, iPhone(iOS 8.0 or later), AndroidTM terminals
    ONVIF® Profile G / M / S / T

    Alarm

    COMPONENT SPECIFICATION
    Alarm Source 3 terminals input, VMD alarm, Command alarm, Audio detection alarm
    Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification,
    HTTP alarm notification Indication on browser,
    TCP alarm notification output

    Input/Output

    COMPONENT SPECIFICATION
    Monitor Output (for Adjustment) VBS : 1.0 V [p-p] / 75 Ω, composite, Pin jack
    An NTSC or PAL signal can be outputted from camera
    Audio input ø3.5 mm stereo mini jack

    For microphone input : Recommended applicable microphone : Plug-in power type
    (Sensitivity of microphone : -51 dB to -38 dB (0 dB=1 V/Pa, 1 kHz))
    Input impedance : Approx. 2 kΩ (unbalanced)
    Supply voltage : 2.5 V ±0.5 V

    For line input : Input level: Approx. –10 dBV
    Audio Output ø3.5 mm stereo mini jack (monaural output)
    Output impedance : Approx. 600 Ω (unbalanced)
    Output level : –20 dBV
    External I/O Terminals ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)
    ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1)
    ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)

    General

    COMPONENT SPECIFICATION
    Safety UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
    EMC FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
    Power Source and Power Consumption DC power supply : DC12 V 880 mA, Approx. 10.6 W
    PoE (IEEE802.3af compliant) Device : DC48 V 220 mA/Approx. 10.6 W (Class 0 device)
    Ambient Operating Temperature –40 °C to + 60 °C (–40 °F to 140 °F)*9
    (Power On range : –30 °C to +60 °C {–22 °F to +140 °F})
    Ambient Operating Humidity 10 to 100 % (no condensation)
    Anti-Condensation System Temish element + Heater + moisture absorption gel
    Water and Dust Resistance IP66,
    Type 4X(UL50E),
    NEMA 4X compliant
    Shock Resistance IK10 (IEC 62262)
    Dimensions ø133 mm (W) x 133 mm (H) x 383 mm (D)
    {ø5-1/4 inches (W) x 5-1/4 inches (H) x 15-3/32 inches (D)}
    Mass (approx.) Approx. 2.4 kg {5.3 lbs.}
    Finish Main body : Aluminum die cast and resin, i-PRO white
    Outer fixing screws : Stainless steel (Corrosion-resistant treatment)
    Front panel : Polycarbonate resin, Clear
