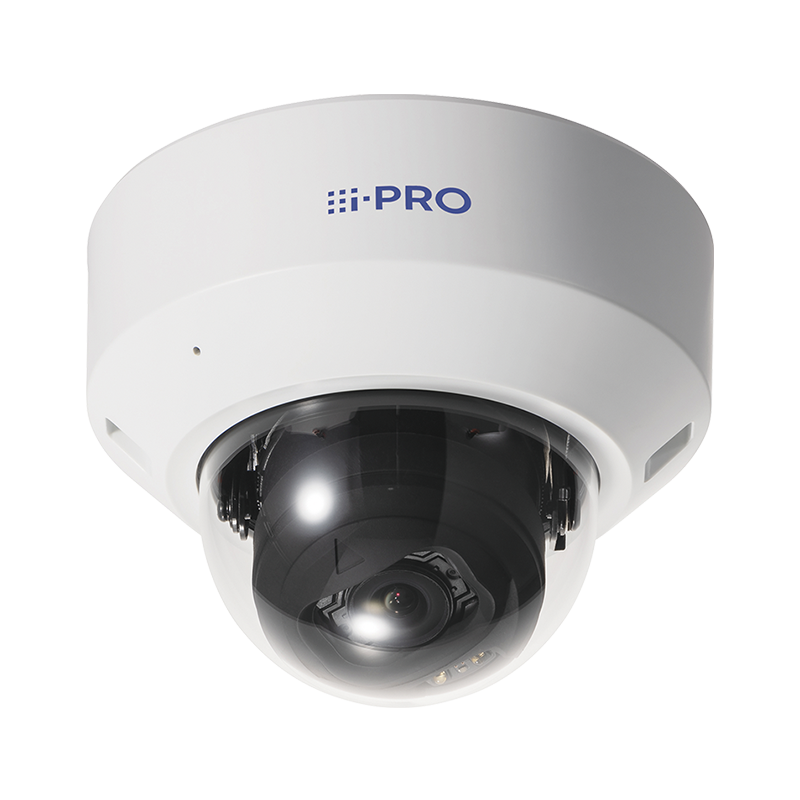

WV-S2136LA

Liên hệ

Loại sản phẩm: Camera giám sát

Hãng sản xuất: iPRO

Mô tả WV-S2136LA

S-series 2MP Network camera with AI engine

2MP (1080p) Indoor Dome Network Camera with AI engine

  • 2MP Indoor dome camera
  • Up to 2 Edge AI analytic apps
  • Built-in IR-LED(70m, 230ft)
  • Built-in FIPS 140-2 Level 3 Certified SecureElement(EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant
  • https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ia_intelligent_auto_mode.png https://i-pro.com/products_and_solutions/sites/default/files/2022-04/easy_installation.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/onvif_profile_s_g_t.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/h265_h264_jpeg.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ai_artificial_intelligence.jpg https://i-pro.com/products_and_solutions/sites/default/files/2023-02/ambarella.png https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ir_led.jpg

    Camera

    COMPONENT SPECIFICATION
    Image Sensor Approx. 1/2.8 type CMOS image sensor
    Scanning Area 5.57 mm (H) × 3.13 mm (V)
    {7/32 inches (H) × 1/8 inches (V)}
    Minimum Illumination Color : 0.007 lx (30IRE, F1.3, 1/30s) / Color : 0.009 lx (50IRE, F1.3, 1/30s)
    BW : 0.006 lx (50IRE, F1.3, 1/30s) / BW : 0 lx(50IRE, F1.3,1/30s with IR LED)
    White Balance ATW1 / ATW2 / AWC
    Shutter Speed [60 fps Mode] 1/60 Fix to 1/10000 Fix, [30fps/15fps mode] 1/30 Fix to 1/10000 Fix
    [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25fps/12.5fps mode] 1/25 Fix to 1/10000 Fix
    i-PRO Intelligent Auto On / Off
    i-PRO Super Dynamic On / Off, The level can be set in the range of 0 to 31.
    Dynamic Range Max.144 dB (Super Dynamic : On, Level 31)
    Adaptive Black Stretch The level can be set in the range of 0 to 255.
    Back light compensation / High light compensation BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off)
    Fog Compensation On / Off (only when Intelligent auto / auto contrast adjust : Off)
    Maximum Gain (AGC) The level can be set in the range of 0 to 11.
    Color/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
    IR LED Light High / Middle / Low / Off,
    Maximum irradiation distance : 70 m {Approx. 230 ft} (30IRE) / 50 m {Approx. 164 ft} (50IRE)
    Digital Noise Reduction (DNR) The level can be set in the range of 0 to 255.
    Video Motion Detection (VMD) On / Off, 4 areas available
    Scene Change Detection On / Off, 1 areas available
    Audio Detection On / Off
    AI Sound classification Gunshot, Yell, Vehicle horn, Glass break
    AI Analytics AI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection,
    AI Vehicle Detection, AI Non mask Detection, AI Occupancy Detection, AI Scene Change Detection

    For details :
    https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software
    3rd party applications are also available.
    https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list
    Privacy Zone On / Off, Up to 8 zones available
    VIQS On / Off, Up to 8 zones available
    Image rotation 0 ° / 90 ° / 180 ° / 270 °
    Camera Title (OSD) On / Off, Up to 40 characters (alphanumeric characters, marks)
    Focus Adjustment Auto focus / Manual

    Lens

    COMPONENT SPECIFICATION
    Optical Zoom 3.1 x (Motorized zoom / Motorized Focus)
    Extra zoom 3.1x - 9.3x (when resolution is 640 x 360)
    Focal Length 2.9 - 9 mm {1/8 inches - 13/32 inches}
    Angular Field of View Horizontal : 36° (TELE) – 115° (WIDE), Vertical : 20° (TELE) – 61° (WIDE)
    Maximum Aperture Ratio 1 : 1.3 (WIDE) – 1 : 2.5 (TELE)
    Focusing Range 0.3 m {11-13/16 inches} – ∞

    DORI

    COMPONENT SPECIFICATION
    Detect (25ppm / 8ppt) Wide: 24.5 m / 80.3 ft, Tele: 118.2 m / 387.7 ft
    Observe (62.5ppm / 19ppt) Wide: 9.8 m / 32.1 ft, Tele: 47.3 m / 155.1 ft
    Recognize (125ppm / 38ppt) Wide: 4.9 m / 16.1 ft, Tele: 23.6 m / 77.5 ft
    Identify (250ppm / 76ppt) Wide: 2.4 m / 8.0 ft, Tele: 11.8 m / 38.8 ft

    Adjusting Angle

    COMPONENT SPECIFICATION
    Adjusting Angle Horizontal : -240 to +120°, Vertical : -30 to +85°, Yaw : ±100°

    Browser GUI

    COMPONENT SPECIFICATION
    Camera Control Brightness, AUX On / Off
    Audio Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High
    Audio Output : On / Off Volume adjustment : Low / Middle / Hig
    GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

    Network

    COMPONENT SPECIFICATION
    Network IF 10Base-T / 100Base-TX, RJ45 connector
    Resolution H.265/ H.264/ JPEG (MJPEG) [16:9 mode (60 fps mode)] , [16:9 mode (30 fps mode)], [16:9 mode (50 fps mode)] , [16:9 mode (25 fps mode)] : 1920x1080, 1280x720, 640x360, 320x180
    [4:3 mode(30 fps mode)] , [4:3 mode (25 fps mode)] : 1280x960, VGA, QVGA
    [4:3 mode(15 fps mode)] , [4:3 mode (12.5 fps mode)] : 2048x1536, 1280x960, VGA, QVGA
    JPEG - Image Quality 10 steps
    i-PRO Smart Coding GOP (Group of pictures control) : Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s) / Advanced(Fixed GOP 60s w/1s key-frame) / Frame rate control (Variable GOP 4s-16s with frame rate control)
    *Advanced and Frame rate control are only available with H.265.
    Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off
    Audio Compression G.726 (ADPCM) : 16 kbps / 32 kbps , G.711 : 64 kbps , AAC-LC : 64 kbps / 96 kbps / 128 kbps
    Audio Transmission Mode Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
    Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6,RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, FTP, SFTP, MQTT, LLDP
    IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, MQTT, LLDP
    No. of Simultaneous Users Up to 14 users (Depends on network conditions)
    Secure FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed, HTTPS, User authentication, Digest authentication, Host authentication, IEEE802.1X, System log, Image transmission log, Brute-force protection, Alteration detection
    SDXC/SDHC/SD Memory Card (Option) H.265 / H.264 recording :
    Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
    JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
    Available SDXC/SDHC/SD Memory Card :
    microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
    microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
    microSD memory card: 2 GB
    Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals
    ONVIF Profile G / M / S / T

    Alarm

    COMPONENT SPECIFICATION
    Alarm Source 3 terminals input, VMD alarm, Command alarm, Audio detection alarm
    Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification,
    HTTP alarm notification Indication on browser,
    Panasonic alarm protocol output

    Input/Output

    COMPONENT SPECIFICATION
    Monitor Output (for Adjustment) VBS : 1.0 V [p-p] / 75 Ω, composite, Pin jack
    An NTSC or PAL signal can be outputted from camera
    Audio input ø3.5 mm stereo mini jack
    For microphone input : Recommended applicable microphone : Plug-in power type
    (Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
    Input impedance : Approx. 2 kΩ (unbalanced)
    Supply voltage : 2.5 V ±0.5 V
    For line input : Input level : Approx. –10 dBV
    Audio Output ø3.5 mm stereo mini jack (monaural output)
    Output impedance : Approx. 600 Ω (unbalanced) / Output level : –20 dBV
    External I/O Terminals (Cable) ALARM IN 1 (Black & white input, Auto time adjustment input) (x1),
    ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1)

    General

    COMPONENT SPECIFICATION
    Safety UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
    EMC FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassB, EN55035
    Power Source and Power Consumption DC power supply : DC12 V 720 mA, Approx. 8.6 W
    PoE (IEEE802.3af compliant) Device :DC48 V 180 mA, Approx. 8.7 W (Class 0 device)
    Ambient Operating Temperature -10 °C to +50 °C (14 °F to 122 °F)
    Ambient Operating Humidity 10 to 90 % (no condensation)
    Dimensions ø129.5 mm x 101 mm (H) {ø5-3/32 inches x 3-31/32 inches (H)}
    Dome radius 40 mm {1-9/16 inches}
    Mass (Approx.) Approx. 470 g {1.04 lbs.}
    Finish Main body : ABS resin, i-PRO white / Dome section : Acrylic resin, Clear
