New S-series wide lineup high resolution network camera with AI engine

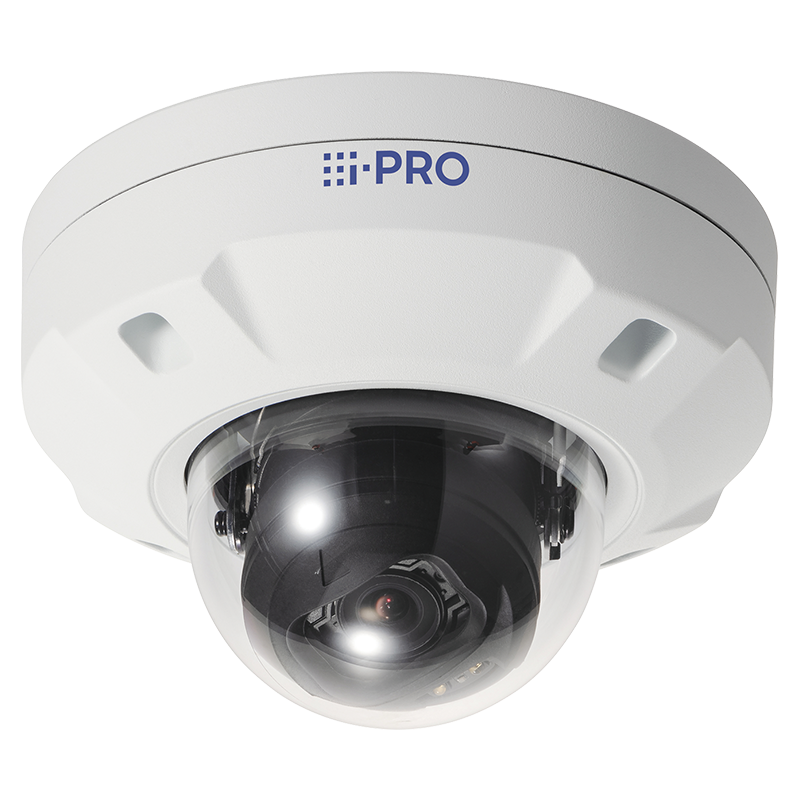

6MP Vandal Resistant Outdoor Dome Network Camera

• 6MP
• Intelligent Auto (with AI Engine)
• Super Dynamic 132dB
• Color night vision (0.04 to 0.06 lx)
• Smart Coding (with AI Engine)
• ClearSight Coating
• Built-in IR LED
• Fiber Optic Media Converter Unit (Optional WV-S25F1)
• Built-in FIPS 140-2 Level 3 Certified Secure Element
  (EdgeLock® SE050F  NXP® Semiconductors)
• NDAA Compliant
•

  Camera

  COMPONENT	SPECIFICATION
  Image Sensor	Approx. 1/1.8 type CMOS image sensor
  Scanning Area	7.68 mm (H)×4.32 mm (V) {5/16 inches (H) × 5/32 inches (V)}
  Minimum Illumination	Color : 0.04 lx (30IRE, F1.5, 1/30s) *1 Color : 0.06 lx (50IRE, F1.5, 1/30s) BW : 0.03 lx (50IRE, F1.5, 1/30s) BW : 0 lx (50IRE, F1.5,1/30s with IR LED)
  White Balance	ATW1 / ATW2 / AWC
  Shutter Speed	[30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix
  Intelligent Auto	On / Off
  Super Dynamic*2	On / Off, The level can be set in the range of 0 to 31.
  Dynamic Range	Max.132 dB (Super Dynamic : On, Level 31)
  Adaptive Black Stretch	The level can be set in the range of 0 to 255.
  Back light compensation / High light compensation	BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off)
  Fog Compensation	On / Off (only when Intelligent auto / auto contrast adjust : Off)
  Maximum Gain (AGC)	The level can be set in the range of 0 to 11.
  Color/BW (ICR)	Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
  IR LED Light	High / Middle / Low / Off, Maximum irradiation distance : 70 m {Approx. 230 ft} (30IRE) *1 50 m {Approx. 164 ft} (50IRE)
  Digital Noise Reduction	The level can be set in the range of 0 to 255.
  Video Motion Detection (VMD)	On / Off, 4 areas available
  Scene Change Detection (SCD)	On / Off, 1 areas available
  Audio Detection	On / Off
  AI Sound classification	Gunshot, Yell, Vehicle horn, Glass break
  AI Analytics	AI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Non mask Detection, AI Occupancy Detection, AI Scene Change Detection For details : https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software 3rd party applications are also available. https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list
  Privacy Zone	On / Off, Up to 8 zones available
  VIQS	On / Off, Up to 8 zones available
  Image rotation*3	0 ° / 90 ° / 180 ° / 270 °
  Camera Title (OSD)	On / Off, Up to 40 characters (alphanumeric characters, marks)
  Focus Adjustment	Auto focus

  Lens

  COMPONENT	SPECIFICATION
  Optical Zoom	2.0x (Motorized zoom / Motorized Focus)
  Extra zoom	2.0x -6.0x (when resolution is 1280 x 720)
  Focal Length	4.3 - 8.6 mm {5/32 inches - 11/32 inches}
  Angular Field of View	[16 : 9 mode] *[4:3 mode] is not supported. Horizontal : 52° (TELE) – 101° (WIDE), Vertical : 29° (TELE) – 55° (WIDE)
  Maximum Aperture Ratio	1 : 1.5 (WIDE) – 1 : 2.4 (TELE)
  Focusing Range	1.0 m {39-3/8 inches} – ∞

  DORI

  COMPONENT	SPECIFICATION
  Detect (25ppm / 8ppf)	Wide: 54.9m / 180.0 ft, Tele: 136.5 m / 447.7 ft
  Observe (62.5ppm / 19ppf)	Wide: 21.9 m / 72.0 ft, Tele: 54.6 m / 179.1 ft
  Recognize (125ppm / 38ppf)	Wide: 11.0 m / 36.0 ft, Tele: 27.3 m / 89.5 ft
  Identify (250ppm / 76ppf)	Wide: 5.5m / 18.0 ft, Tele: 13.6 m / 44.8 ft

  Adjusting Angle

  COMPONENT	SPECIFICATION
  Adjusting Angle	Horizontal : -194 to +166°, Vertical : -30 to +85°, Yaw : ±100°

  Browser GUI

  COMPONENT	SPECIFICATION
  Camera Control	Brightness, AUX On / Off
  Audio	Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High
  GUI / Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
  Browser*4	Microsoft Edge, Firefox, Google Chrome

  Network

  COMPONENT	SPECIFICATION
  Network IF	10Base-T / 100Base-TX, RJ45 connector
  Resolution H.265/ H.264/ JPEG (MJPEG)	[16 : 9 mode (30 fps mode)][16 : 9 mode (25 fps mode)] 3328x1872/2560x1440/1920x1080/1280x720/640x360/320x180
  JPEG - Image Quality	10 steps
  Smart Coding	GOP (Group of pictures control): Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/ Advanced(Fixed GOP 60s w/1s key-frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control) *Advanced and Frame rate control are only available with H.265. Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off
  Audio Compression	G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps AAC-LC*7 : 64 kbps / 96 kbps / 128 kbps
  Audio Transmission Mode	Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
  Supported Protocol	IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP
  No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
  Secure	FIPS 140-2 level 3 Certified Secure Element (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed, User authentication, Host authentication, HTTPS, 802.1X Support, Data encryption
  SDXC/SDHC/SD Memory Card (Option)	H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SDXC/SDHC/SD Memory Card : microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB microSD memory card : 2 GB
  Mobile Terminal Compatibility	iPad, iPhone(iOS 8.0 or later), Android™ terminals
  ONVIF Profile	G / M / S / T

  Alarm

  COMPONENT	SPECIFICATION
  Alarm Source	3 terminals input, VMD alarm, Command alarm, Audio detection alarm
  Alarm Actions	SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output

  Input/Output

  COMPONENT	SPECIFICATION
  Monitor Output (for Adjustment)	VBS : 1.0 V [p-p] / 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera
  Audio input*8	ø3.5 mm stereo mini jack
  Audio Output*8	ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 Ω (unbalanced) Output level : –20 dBV
  External I/O Terminals*8	ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)

  General

  COMPONENT	SPECIFICATION
  Safety	UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
  EMC	FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
  Power Source and Power Consumption	DC power supply*8 : DC12 V 1.0 A, Approx. 12.0 W PoE (IEEE802.3af compliant) Device : DC48 V 240 mA, Approx. 11.5 W (Class 0 device)
  Ambient Operating Temperature	-40 °C to +60 °C (-40 °F to 140 °F)*9 (Power On range : –30 °C to +60 °C {–22 °F to +140 °F})
  Ambient Operating Humidity	10 to 100 % (no condensation)
  Anti-Condensation System	Temish element + Heater + moisture absorption gel
  Water and Dust Resistance	IP66, IEC60529 measuring standard compatible, Type 4X(UL50E), NEMA 4X compliant
  Shock Resistance	IK10 (IEC 62262)
  Dimensions	ø154 mm x 105 mm (H) {ø6-1/16 inches x 4-1/8 inches (H)}
  Mass (Approx.)	Approx. 1.1 kg {2.43 lbs.}
  Finish	Main body : Aluminum die cast, i-PRO white Outer fixing screws : Stainless steel (Corrosion-resistant treatment) Dome section : Polycarbonate resin, Clear (with ClearSight coating)
