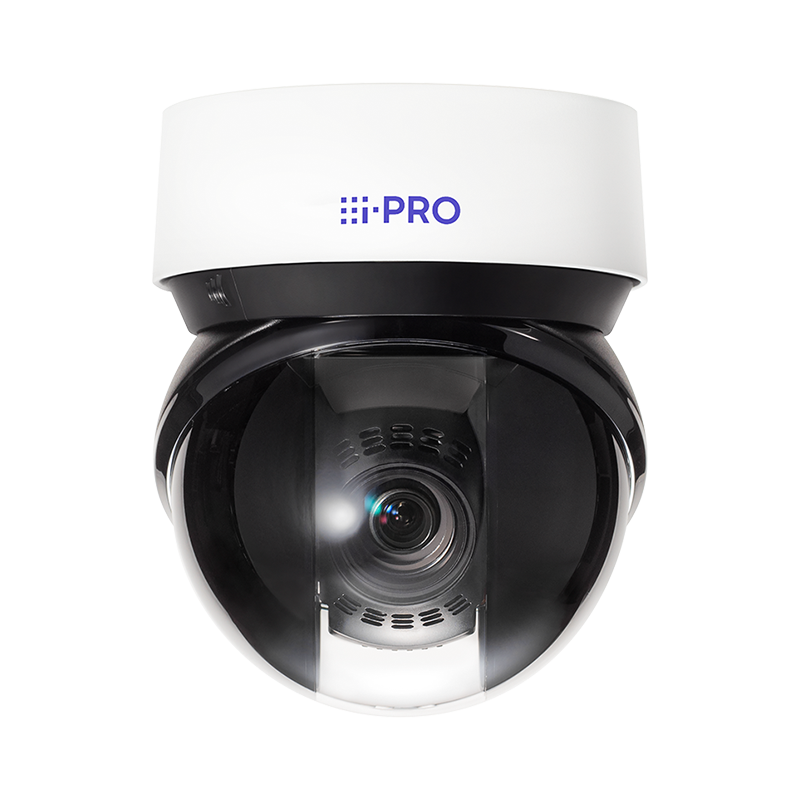

WV-S66300-Z3

Liên hệ

Loại sản phẩm: Camera giám sát

Hãng sản xuất: iPRO

Mô tả WV-S66300-Z3

Rapid PTZ camera with AI engine

2MP Outdoor 32x PTZ Network Camera with AI engine

  • 2MP 32x PTZ camera
  • Innovative New Form Factor PTZ
  • Up to 2 Edge AI analytic apps
  • AI auto tracking
  • High speed Pan/Tilt drive (Pan: 700deg./s, Tilt: 500deg./s)
  • IP66, IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant
  • https://i-pro.com/products_and_solutions/sites/default/files/2022-04/onvif_profile_s_g_t.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ai_artificial_intelligence.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ia_intelligent_auto_mode.png https://i-pro.com/products_and_solutions/sites/default/files/2022-04/easy_installation.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/h265_h264_jpeg.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ip66_standard.jpg Vandal Resistant https://i-pro.com/products_and_solutions/sites/default/files/2023-02/ambarella.png

    Camera

    COMPONENT SPECIFICATION
    Image Sensor Approx. 1/2.8 type CMOS image sensor
    Scanning Area 5.57 mm (H) × 3.13 mm (V)
    {7/32 inches (H) × 1/8 inches (V)}
    Minimum Illumination Color : 0.011 lx (30IRE, F1.6, 1/30s)
    Color : 0.015 lx (50IRE, F1.6, 1/30s)
    BW : 0.006lx (50IRE, F1.6, 1/30s)
    White Balance ATW1 / ATW2 / AWC
    Shutter Speed [60fps mode] 1/60 Fix to 1/10000 Fix
    [50fps mode] 1/50 Fix to 1/10000 Fix
    Maximum shutter 60 fps/30 fps/15 fps mode: Max.1/4000s to Max.16/30s
    50 fps/25 fps/12.5 fps mode: Max.1/4000s to Max.16/25s
    Intelligent Auto On / Off
    Super Dynamic On / Off, The level can be set in the range of 0 to 31.
    Dynamic Range Max.144 dB (Super Dynamic : On, Level 31)
    Adaptive Black Stretch The level can be set in the range of 0 to 255.
    Back Light Compensation/ High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off
    The level can be set in the range of 0 to 31 (only when Super dynamic / Intelligent Auto :Off)
    Fog Compensation On / Off, The level can be set in the range of 0 to 8
    (only when Intelligent auto / auto contrast adjust : Off)
    Maximum Gain (AGC) The level can be set in the range of 0 to 11.
    Color/BW (ICR) Off/On/Auto1(Normal)/Auto2(IR Light)/Auto3(SCC)
    IR LED Light -
    Digital Noise Reduction The level can be set in the range of 0 to 255.
    Video Motion Detection (VMD) On / Off, 4 areas available
    Scene Change Detection (SCD) On / Off, 1 areas available
    Audio Detection On / Off
    AI Sound Classification Gunshot, Yell, Vehicle horn, Glass break
    AI Analytics AI Video Motion Detection, AI Face Detection,
    AI People Detection, AI Vehicle Detection,
    AI Non mask Detection, AI Occupancy Detection, AI Scene Change Detection

    For details :
    https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software
    3rd party applications are also available.
    https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list
    Privacy Zone On / Off, Up to 32 zones available
    VIQS On / Off, Up to 8 zones available
    Image Stabilizer On / Off (Built-in gyro sensor)
    Camera Title (OSD) On / Off, Up to 40 characters (alphanumeric characters, marks)

    Lens

    COMPONENT SPECIFICATION
    Optical zoom 32x (Motorized zoom / Motorized Focus)
    Extra zoom Max.48x(32x-48x when resolution is 1280x720)
    Focal length 4.25 - 136 mm {5/32 inches - 5-11/32 inches}
    Angular Field of View [16 : 9 mode] Horizontal : 2.4° (TELE) – 65° (WIDE), Vertical : 1.4° (TELE) – 39° (WIDE)(TBD)
    [ 4 : 3 mode] Horizontal : 1.9° (TELE) – 51° (WIDE), Vertical : 1.4° (TELE) – 39° (WIDE)(TBD)
    Maximum Aperture Ratio 1 : 1.6 (WIDE) – 1 : 4.4 (TELE)
    Focus range 3.0 m {118-1/8 inches} –∞
    Aperture range F1.6 - close

    DORI

    COMPONENT SPECIFICATION
    Detect (25ppm / 8ppf) Wide: 60.3 m / 197.8 ft, Tele: 1833.2 m / 6014.4 ft
    Observe (62.5ppm / 19ppf) Wide: 24.1 m / 79.1 ft , Tele: 733.3 m / 2405.8 ft
    Recognize (125ppm / 38ppf) Wide: 12.1 m / 39.6 ft, Tele: 366.6 m / 1202.9 ft
    Identify (250ppm / 76ppf) Wide: 6.0 m / 19.8 ft, Tele: 183.3 m / 601.4 ft

    System on Chip (SoC)

    COMPONENT SPECIFICATION
    System on Chip (SoC) Ambarella CV25m

    Adjusting Angle

    COMPONENT SPECIFICATION
    Adjusting Angle Horizontal : 360° Endless Panning, TILT : -20° to +90°, Yaw : 0°

    Pan /tilt

    COMPONENT SPECIFICATION
    Panning Range 360° Endless Panning
    Panning Speed Manual: Approx. 0.065°/s – 150°/s, Preset: Up to approx. 700°/s
    Tilting Range Operational -20° – +90°
    Tilting Speed Manual: Approx. 0.065°/s –150°/s, Preset: Up to approx. 500°/s
    Preset Positions 256 positions
    Auto Mode Auto track/ Auto pan/ Preset sequence/ Patrol
    Self Return 10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min
    Active ClearSight Yes

    Browser GUI

    COMPONENT SPECIFICATION
    GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
    Browser *1 Microsoft Edge, Firefox, Google Chrome

    Network

    COMPONENT SPECIFICATION
    Network IF 10Base-T / 100Base-TX, RJ45 connector
    Resolution H.265/ H.264/ JPEG (MJPEG) [16:9 mode (60fps mode)],[16:9 mode (30fps mode)],
    [16:9 mode (50fps mode)],[16:9 mode (25fps mode)]
    1920x1080, 1280x720, 640x360, 320x180
    [4:3 mode (30 fps mode)], [4:3 mode (25 fps mode)]
    1280x960, VGA, QVGA
    [4:3 mode (15 fps mode)], [4:3 mode (12.5 fps mode)]
    2048x1536* , 1280x960, VGA, QVGA
    *Used bu super resolution techniques
    H.265/H.264 Transmission Mode/Type *2 [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort
    [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast
    JPEG [Image Quality] 10 steps
    Smart Coding GOP (Group of pictures) control:
    Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/
    Advanced(Fixed GOP 60s w/1s key-frame)/
    Frame rate control (Variable GOP 4s-16s with frame rate control)
    *Advanced and Frame rate control are only available with H.265.
    Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off
    Audio compression method *3 G.726 (ADPCM) : 16 kbps / 32 kbps
    G.711 : 64 kbps
    AAC-LC*5 : 64 kbps / 96 kbps / 128 kbps
    Audio Transmission Mode Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
    Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3,
    DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
    IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP,
    DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP,
    IEEE 802.1X, DiffServ, SRTP, MQTT, NTCIP
    No. of Simultaneous Users Up to 14 users (Depends on network conditions)
    Secure FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate
    GlobalSign® pre-installed,
    HTTPS, User authentication, Digest authentication, Host authentication,
    IEEE802.1X, System log, Image transmission log, Brute-force protection,
    Alteration detection
    SDXC/SDHC/SD Memory Card (Option) H.265 / H.264 recording :
    Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
    JPEG recording :
    Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
    Compatible SDXC/SDHC/SD Memory Card :
    microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB
    microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB
    microSD memory card : 2 GB
    Mobile Terminal Compatibility iPad, iPhone (iOS 8.0 or later), Android™ terminals
    ONVIF® Profile G / M / S / T

    Alarm

    COMPONENT SPECIFICATION
    Alarm Source 3 terminals input, VMD alarm, Command alarm, Audio detection alarm
    Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification,
    HTTP alarm notification Indication on browser, TCP alarm notification output

    Input/Output

    COMPONENT SPECIFICATION
    Audio Input *4 ø3.5 mm stereo mini jack
    Recommended applicable microphone : Plug-in power type
    (Sensitivity of microphone : –51 dB to –38 dB (0 dB=1 V/Pa, 1 kHz))
    Input impedance : Approx. 2 kΩ (unbalanced)
    Supply voltage : 2.5 V ±0.5 V
    Input level : Approx. –10 dBV
    Audio Output *4 ø3.5 mm stereo mini jack (monaural output)
    Output impedance : Approx. 600Ω (unbalanced)
    Output level : –20 dBV
    External I/O Terminals *4 ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)
    ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)

    General

    COMPONENT SPECIFICATION
    Safety UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
    EMC FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035
    Other Standard NEMA-TS2
    Power Source and Power Consumption PoE++ (IEEE802.3bt),
    PoE++ DC54V: 700mA/Approx.37.8W (Class 6 device)
    Ambient Operating Temperature -50 °C to +60 °C * (-58 °F to +140 °F)(PoE++)
    (Power On range : –30 °C to +60 °C {–22 °F to +140 °F})(TBD)
    * When using with the IR LED light constantly lit, the upper limit of the operating temperature range is +50°C {+122 °F}.
    Ambient Operating Humidity 10 to 100 % (no condensation)
    Water and Dust Resistance IP66, IEC60529 measuring standard compatible, Type 4X(UL50E), NEMA 4X compliant
    Shock Resistance IK10 (IEC 62262)
    Wind Resistance Up to 40 m/s {approx. 89 mph}
    Dimensions Maximum diameter:φ167mm × 205 mm (H){φ6-9/16 inches × 8-1/16 inches (H)}
    Dome radius SR 77.5 mm {SR 3-1/16 inches}
    (excluding an attachment for the conduit portion and protruding parts)
    Mass (approx.) Approx. 3 kg (without attachment)
    Finish Main body :
    Aluminum die cast, i-PRO white
    Outer fixing screws : Stainless steel (Corrosion-resistant treatment)
    Dome cover: Polycarbonate resin, Clear
    Other Tamper-resistant enclosure *5
