Loại sản phẩm: Camera giám sát

Hãng sản xuất: iPRO

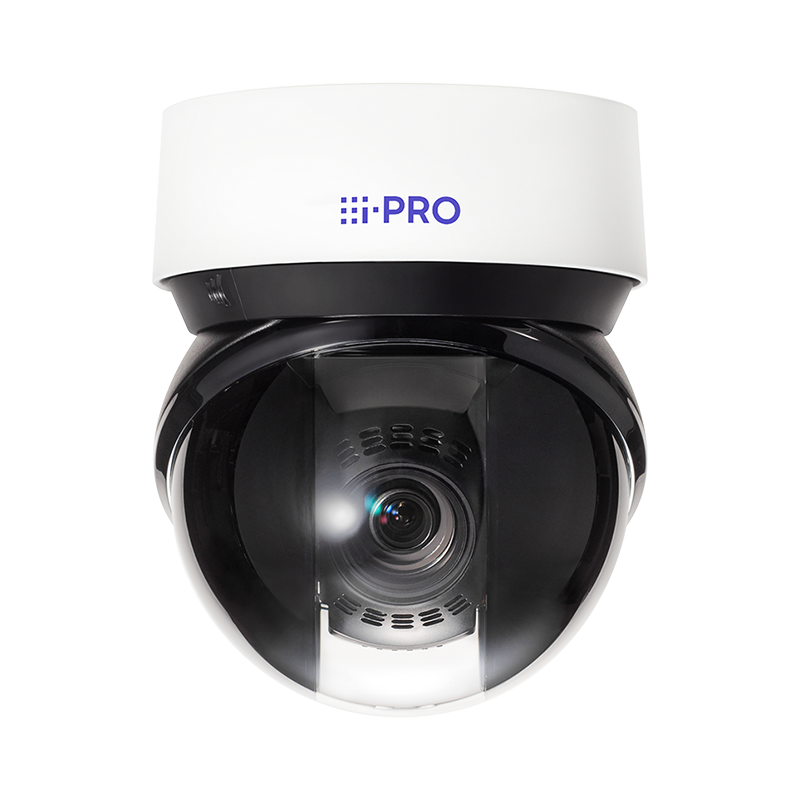

Mô tả WV-S66600-Z3L

Rapid PTZ camera with AI engine and IR-LED

6MP Outdoor 30x PTZ Network Camera with AI engine

  • 6MP 30x PTZ camera
  • Innovative New Form Factor PTZ
  • Up to 3 Edge AI analytic apps
  • AI auto tracking
  • Built-in IR-LED (200m/656ft)
  • High speed Pan/Tilt drive (Pan: 700deg./s, Tilt: 500deg./s)
  • IP66, IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant
  • https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ai_artificial_intelligence.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ia_intelligent_auto_mode.png https://i-pro.com/products_and_solutions/sites/default/files/2022-04/easy_installation.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/h265_h264_jpeg.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ip66_standard.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/onvif_profile_s_g_t.jpg https://i-pro.com/products_and_solutions/sites/default/files/2023-02/ambarella.png https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ir_led.jpg Vandal Resistant


    Image Sensor Approx. 1/2.8 type CMOS image sensor
    Scanning Area 5.57 mm (H) × 3.13 mm (V)
    {7/32 inches (H) × 1/8 inches (V)}
    Minimum Illumination Color : 0.13 lx (30IRE, F1.8, 1/30s)
    Color : 0.19 lx (50IRE, F1.8, 1/30s)
    BW : 0 lx (50IR, F1.8, 1/30s with IR LED)
    BW : 0.1 lx (50IRE, F1.8, 1/30s)
    White Balance ATW1 / ATW2 / AWC
    Shutter Speed [30 fps mode] 1/30 Fix to 1/10000 Fix
    [25 fps mode] 1/25 Fix to 1/10000 Fix
    Maximum shutter [30 fps Mode] Max.1/4000s to Max.16/30s
    [25 fps Mode] Max.1/4000s to Max.16/25s
    Intelligent Auto On / Off
    Super Dynamic On / Off, The level can be set in the range of 0 to 31.
    Dynamic Range Max.132 dB (Super Dynamic : On, Level 31)
    Adaptive Black Stretch The level can be set in the range of 0 to 255.
    Back Light Compensation/ High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off
    The level can be set in the range of 0 to 31 (only when Super dynamic / Intelligent Auto : Off)
    Fog Compensation On / Off, The level can be set in the range of 0 to 8
    (only when Intelligent auto / auto contrast adjust : Off)
    Maximum Gain (AGC) The level can be set in the range of 0 to 11.
    Color/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
    IR LED Light High/ Middle/ Low/ Off
    Maximum irradiation distance :
    280 m {Approx. 920 ft} (30IRE)*
    200 m {Approx. 660 ft} (30IRE)
    ※Converted value
    Digital Noise Reduction The level can be set in the range of 0 to 255.
    Video Motion Detection (VMD) On / Off, 4 areas available
    Scene Change Detection (SCD) On / Off, 1 areas available
    Audio Detection On / Off
    AI Sound Classification Gunshot, Yell, Vehicle horn, Glass break
    AI Analytics AI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Non mask Detection, AI Occupancy Detection, AI Scene Change Detection

    For details :
    3rd party applications are also available.
    Privacy Zone On / Off, Up to 32 zones available
    VIQS On / Off, Up to 8 zones available
    Image Stabilizer On / Off (Built-in gyro sensor)
    Image Rotation On / Off
    Camera Title (OSD) On / Off, Up to 40 characters (alphanumeric characters, marks)


    Optical zoom 30x (Motorized zoom / Motorized focus)
    Extra zoom Max. 78x
    (30x - 78x when resolution is 1280x720)
    Focal length 4.5mm - 135mm
    (3/16 inches - 5-5/16 inches)
    Angular Field of View [16 : 9 mode]
    Horizontal : 2.5° (TELE) – 62° (WIDE), Vertical : 1.4° (TELE) – 37° (WIDE)
    Maximum Aperture Ratio 1 : 1.8 (WIDE) – 1 : 4.7 (TELE)
    Focus range 3.0 m {118-1/8 inches} –∞
    Aperture range F1.8 – close


    Detect (25ppm / 8ppf) Wide: 110.8 m / 363.4 ft, Tele: 3050.4 m / 10007.9 ft
    Observe (62.5ppm / 19ppf) Wide: 44.3 m / 145.4 ft, Tele: 1220.2 m / 4003.2 ft
    Recognize (125ppm / 38ppf) Wide: 22.2 m / 72.7 ft, Tele: 610.1 m / 2001.6 ft
    Identify (250ppm / 76ppf) Wide: 11.1 m / 36.3 ft, Tele: 305.0 m / 1000.8 ft

    System on Chip (SoC)

    System on Chip (SoC) Ambarella CV22

    Adjusting Angle

    Adjusting Angle Horizontal : 360° Endless Panning, TILT : -20° to +90°, Yaw : 0°

    Pan /tilt

    Panning Range 360° Endless panning
    Panning Speed Manual: Approx. 0.065°/s – 150°/s
    Preset: Up to approx. 700°/s
    Tilting Range Operational range -20° – +90°
    Tilting Speed Manual: Approx. 0.065°/s –150°/s Preset: Up to approx. 500°/s
    Preset Positions 256 positions
    Auto Mode Auto track/ Auto pan/ Preset sequence/ Patrol
    Self Return 10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min
    Active ClearSight Yes

    Browser GUI

    GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
    Browser *1 Microsoft Edge, Firefox, Google Chrome


    Network IF 10Base-T / 100Base-TX, RJ45 connector
    Resolution H.265/ H.264/ JPEG (MJPEG) [16:9 mode (30 fps mode)]
    [16:9 mode (25 fps mode)]
    3328x1872/ 2560x1440/ 1920x1080/
    1280x720/ 640x360/ 320x180
    H.265/H.264 Transmission Mode / Type *2 [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort
    [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast
    JPEG [Image Quality] 10 steps
    Smart Coding GOP (Group of pictures) control:
    Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/
    Advanced(Fixed GOP 60s w/1s key-frame)/
    Frame rate control (Variable GOP 4s-16s with frame rate control)
    *Advanced and Frame rate control are only available with H.265.
    Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off
    Audio compression method *3 G.726 (ADPCM) : 16 kbps / 32 kbps
    G.711 : 64 kbps
    AAC-LC : 64 kbps / 96 kbps / 128 kbps
    Audio Transmission Mode Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
    Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3,
    DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
    IEEE 802.1X, DiffServ, SRTP, MQTT, NTCIP
    No. of Simultaneous Users Up to 14 users (Depends on network conditions)
    Secure FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate
    GlobalSign® pre-installed,
    HTTPS, User authentication, Digest authentication, Host authentication,
    IEEE802.1X, System log, Image transmission log, Brute-force protection,
    Alteration detection
    SDXC/SDHC/SD Memory Card (Option) H.265 / H.264 recording :
    Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
    JPEG recording :
    Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
    Compatible SDXC/SDHC/SD Memory Card :
    microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB
    microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB
    microSD memory card : 2 GB
    Mobile Terminal Compatibility iPad, iPhone (iOS 8.0 or later), AndroidTM terminals
    ONVIF®Profile G / M / S / T


    Alarm Source 3 terminals input, VMD alarm, Command alarm, Audio detection alarm
    Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification,
    HTTP alarm notification Indication on browser, TCP alarm notification output


    Audio Input *4 ø3.5 mm stereo mini jack
    Recommended applicable microphone: Plug-in power type
    (Sensitivity of microphone:-51dB to -38dB (0 dB=1 V/Pa, 1 kHz))
    Input impedance: Approx. 2 kΩ (unbalanced)
    Supply voltage: 2.5 V ±0.5 V
    For line input : Input level : Approx. –10 dBV
    Audio Output *4 ø3.5 mm stereo mini jack (Audio output is monaural.)
    Output impedance: Approx. 600 Ω (unbalanced)
    Output level: –20 dBV
    External I/O Terminals *4 ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)
    ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)


    Safety UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
    EMC FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035
    Other Standard NEMA-TS2
    Power Source and Power Consumption PoE++ (IEEE802.3bt compliant)
    DC 54 V : 850 mA/Approx. 45.9 W (Class 6 device)
    Ambient Operating Temperature –50 °C to 60 °C * {–58 °F to 140 °F}
    (Power On range: –30 °C to +60 °C {–22 °F to 140 °F})
    * When using with the IR LED light constantly lit, the upper limit of the operating temperature range is +50°C {+122 °F}.
    Ambient Operating Humidity 10 to 100 % (no condensation)
    Water and Dust Resistance IP66, IEC60529 measuring standard compatible, Type 4X(UL50E), NEMA 4X compliant
    Shock Resistance IK10 (IEC 62262)
    Wind Resistance Up to 40 m/s {approx. 89 mph}
    Dimensions Maximum diameter:φ167mm × 205 mm (H){φ6-9/16 inches × 8-1/16 inches (H)}
    Dome radius SR 77.5 mm {SR 3-1/16 inches}
    (excluding an attachment for the conduit portion and protruding parts)
    Mass (approx.) Approx. 3 kg (without attachment)
    Finish Main body :
    Aluminum die cast, i-PRO white
    Outer fixing screws : Stainless steel (Corrosion-resistant treatment)
    Dome cover: Polycarbonate resin, Clear
    Other Tamper-resistant enclosure *5
