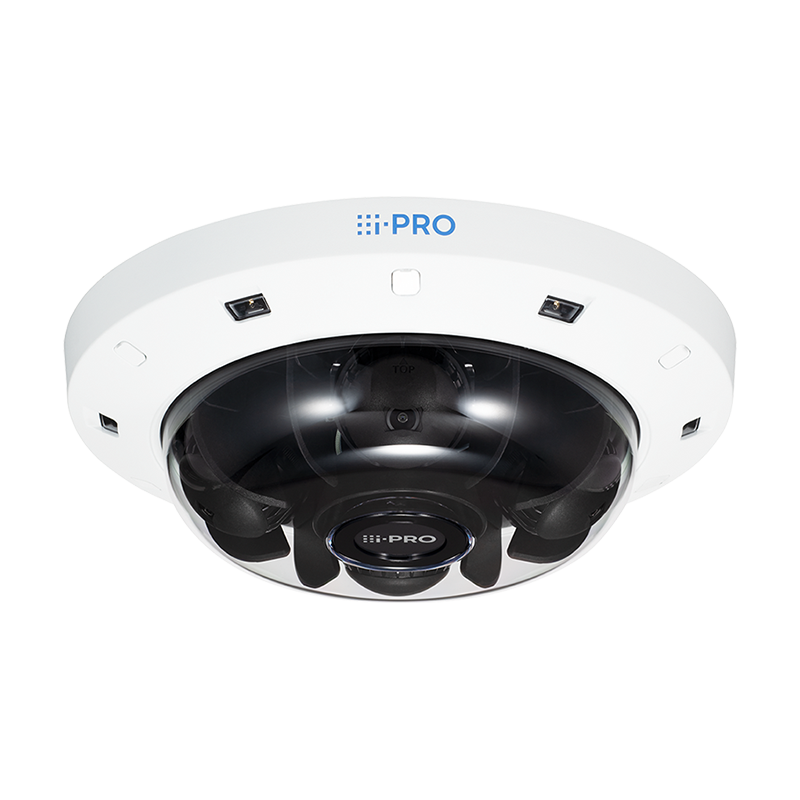

WV-S8564L

Liên hệ

Loại sản phẩm: Camera giám sát

Hãng sản xuất: iPRO

Mô tả WV-S8564L

Industry thinnest* multi-directional cameras with AI Engine

4x6MP(25MP) Outdoor Multi-Directional Network Camera with AI Engine

  • 4 x 6MP(25MP) 3328x1872 up to 15fps
  • 360° coverage with one IP address
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 120dB
  • Color night vision (0.084 to 0.12 lx)
  • Smart Coding (with AI Engine)
  • Built-in 360° IR LED
  • Continuous view assistance
  • Wide range tilt angle adjustment mechanism
  • Built-in FIPS 140-2 Level 3 Certified Secure Element
     (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant
  • https://i-pro.com/products_and_solutions/sites/default/files/2022-04/onvif_profile_s_g_t.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ai_artificial_intelligence.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ia_intelligent_auto_mode.png https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ip66_standard.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/easy_installation.jpg https://i-pro.com/products_and_solutions/sites/default/files/2022-04/h265_h264_jpeg.jpg https://i-pro.com/products_and_solutions/sites/default/files/2023-02/ambarella.png https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ir_led.jpg

    Camera

    COMPONENT SPECIFICATION
    Image Sensor 4x 1/2.8 type CMOS image sensor
    Scanning Area 5.56 mm(H) x 3.13 mm(V)
    {7/32 inches(H) × 1/8 inches(V)}
    Minimum Illumination Color : 0.084 lx {30IRE, F2.0, 1/30 s}
    Color : 0.12 lx {50IRE, F2.0, 1/30 s}
    BW : 0.05 lx {50IRE, F2.0, 1/30 s}
    BW: 0 lx {50IRE, F2.0, 1/30 s with IR LED}
    White Balance ATW1/ ATW2/ AWC
    Maximum shutter 15 fps mode: Max.1/10000s to Max.16/30s
    12.5 fps mode: Max.1/10000s to Max.16/25s
    Intelligent Auto On / Off
    Super Dynamic On / Off, The level can be set in the range of 0 to 31.
    Dynamic Range Max.120 dB
    (Super Dynamic : On, Level 31)
    Adaptive Black Stretch The level can be set in the range of 0 to 255.
    Back Light Compensation/High Light Compensation BLC (Back light compensation)
    HLC (High light compensation)
    Off (only when Super dynamic / Intelligent Auto : Off)
    Fog Compensation On / Off (only when Intelligent auto / auto contrast adjust : Off)
    Maximum Gain (AGC) The level can be set in the range of 0 to 11.
    Color/BW (ICR) Off / On(IR Light Off) / On(IR Light On) / Auto1(IR Light Off) /
    Auto2(IR Light On) / Auto3(SCC)
    IR LED Light High / Middle / Low / Off
    Maximum irradiation distance :
    40 m {Approx. 131 ft} (30IRE)
    30 m {Approx. 99 ft} (50IRE)
    Digital Noise Reduction The level can be set in the range of 0 to 255.
    Panorama Panorama mode (H: 180 deg.)
    Video Motion Detection (VMD) On / Off, 4 areas available
    Scene Change Detection (SCD) On / Off, 1 areas available
    Audio Detection On / Off
    AI Sound Classification Selectable from Gunshot, Yell, Vehicle horn, Glass break
    AI Analytics AI Video Motion Detection, AI Privacy Guard, AI Face Detection,
    AI People Detection, AI Vehicle Detection,
    AI Non mask Detection, AI Occupancy Detection, AI Scene Change Detection

    For details :
    https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software
    3rd party applications are also available.
    https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list
    Privacy Zone On / Off
    Up to 8 zones available
    VIQS On / Off
    Up to 8 zones available
    Image Rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°
    Camera Title (OSD) On / Off
    Up to 40 characters
    Up to 2 Lines (alphanumeric characters, marks)
    Focus Adjustment

    Lens

    COMPONENT SPECIFICATION
    Optical zoom 1x
    Extra zoom max 5x (when resolution is 640x360)
    Focal length 3.1 mm {1/8 inches}
    Angular Field of View Horizontal : 108°, Vertical : 56°
    Maximum Aperture Ratio 1 : 1.4
    Focus range 3 m {9.84 ft} – ∞

    DORI

    COMPONENT SPECIFICATION
    Detect (25ppm / 8ppf) 48.4 m / 158.7 ft
    Observe (62.5ppm / 19ppf) 19.3 m / 63.5 ft
    Recognize (125ppm / 38ppf) 9.7 m / 31.7 ft
    Identify (250ppm / 76ppf) 4.8 m / 15.9 ft

    System on Chip (SoC)

    COMPONENT SPECIFICATION
    System on Chip (SoC) Ambarella CV2

    Adjusting Angle

    COMPONENT SPECIFICATION
    Adjusting Angle Camera 1, 2, 3, 4 :
    Horizontal : ±125° (Adjust by horizontal (PAN) angle)
    Vertical : +10° to +105° (Adjust by vertical (TILT) angle)
    Yaw : ±90° (Adjust by azimuth (YAW) angle)
    Twist : ±30°
    *The above is the adjustable range of a single camera.
    The adjustable range of each camera varies according to
    the positional relationship with other cameras.

    Browser GUI

    COMPONENT SPECIFICATION
    Camera Control Brightness, AUX On / Off
    Audio Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High
    Audio Output : On / Off Volume adjustment : Low / Middle / High
    GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
    Browser Microsoft Edge, Firefox, Google Chrome

    Network

    COMPONENT SPECIFICATION
    Network IF 10Base-T / 100Base-TX / 1000Base-T, RJ45 connector
    Resolution H.265/ H.264/ JPEG (MJPEG) [16 : 9 mode]
    3328x1872 / 2560×1440 / 1920×1080 / 1280×720 / 640×360 / 320×180
    H.265/H.264 [Transmission Mode]
    Constant bit rate / VBR / Frame rate / Best effort
    [Transmission Type]
    Unicast port (AUTO) / Unicast port (MANUAL) / Multicast
    JPEG [Image Quality]
    10 steps
    Smart Coding GOP (Group of pictures) control :
    On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off
    *On (Frame rate control) and On (Advanced) are only available with H.265.
    Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off
    Audio Compression G.726 (ADPCM) : 16 kbps / 32 kbps
    G.711 : 64 kbps
    AAC-LC : 64 kbps / 96 kbps / 128 kbps
    Audio Transmission Mode Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
    Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3,
    DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, MQTT
    IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS,
    NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, LLDP, MQTT
    No. of Simultaneous Users Up to 24 users (Depends on network conditions)
    Secure FIPS 140-2 level 3 Certified Secure Element (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed,
    User authentication, Host authentication, HTTPS, 802.1X Support, Data encryption
    SDXC/SDHC/SD Memory Card H.265 / H.264 recording :
    Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
    JPEG recording :
    Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
    Compatible SDXC/SDHC/SD Memory Card :
    microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB
    microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB
    microSD memory card : 2 GB
    Mobile Terminal Compatibility iPad,
    iPhone,
    Android™ terminals
    ONVIF® Profile G / M / S / T

    Alarm

    COMPONENT SPECIFICATION
    Alarm Source 3 terminals input,
    VMD alarm,
    SCD alarm,
    Command alarm,
    Audio detection alarm
    Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification,
    HTTP alarm notification Indication on browser, TCP alarm notification output

    Input/Output

    COMPONENT SPECIFICATION
    Monitor Output (for Adjustment)
    Audio input ø3.5 mm stereo mini jack

    For microphone input : Recommended applicable microphone : Plug-in power type
    (Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
    Input impedance : Approx. 2 kΩ (unbalanced)
    Supply voltage : 2.4 V ±0.5 V

    For line input : Input level: Approx. –10 dBV
    Audio Output ø3.5 mm stereo mini jack (monaural output)
    Output impedance : Approx. 600 Ω (unbalanced)
    Output level : –20 dBV
    External I/O Terminals ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)
    ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ ALARM OUT/ AUX OUT) (x1)

    General

    COMPONENT SPECIFICATION
    Safety UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
    EMC FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
    Power Source and Power Consumption PoE+ (IEEE802.3at compliant):
    DC 54 V: 470 mA/Approx. 25.4 W (Class 4 device)
    Ambient Operating Temperature –40 °C to +60 °C*7 {–40 °F to 140 °F}
    (Power On range: –20 °C to +60 °C {–4 °F to 140 °F})
    Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C(165 °F)
    Ambient Operating Humidity 10 to 100 % (no condensation)
    Anti-Condensation System Temish element + moisture absorption gel
    Water and Dust Resistance IP67/IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant
    Shock Resistance IK10 (IEC 62262)
    Other standard support NEMA TS 2 (2.2.7-2.2.9)
    Dimensions When using the attachment plate only :
    ø300 mm × 90 mm (H) {ø11-13/16 inches ×3-17/32 inches (H)}
    Mass (approx.) When using the attachment plate only : Approx. 3.3 kg {7.28 lbs}
    Finish Main body : Aluminum die cast, i-PRO white
    Outer fixing screws : Stainless steel (Corrosion-resistant treatment)
