WV-U11300-V2

Liên hệ

Loại sản phẩm: Camera giám sát

Hãng sản xuất: iPRO

Mô tả WV-U11300-V2

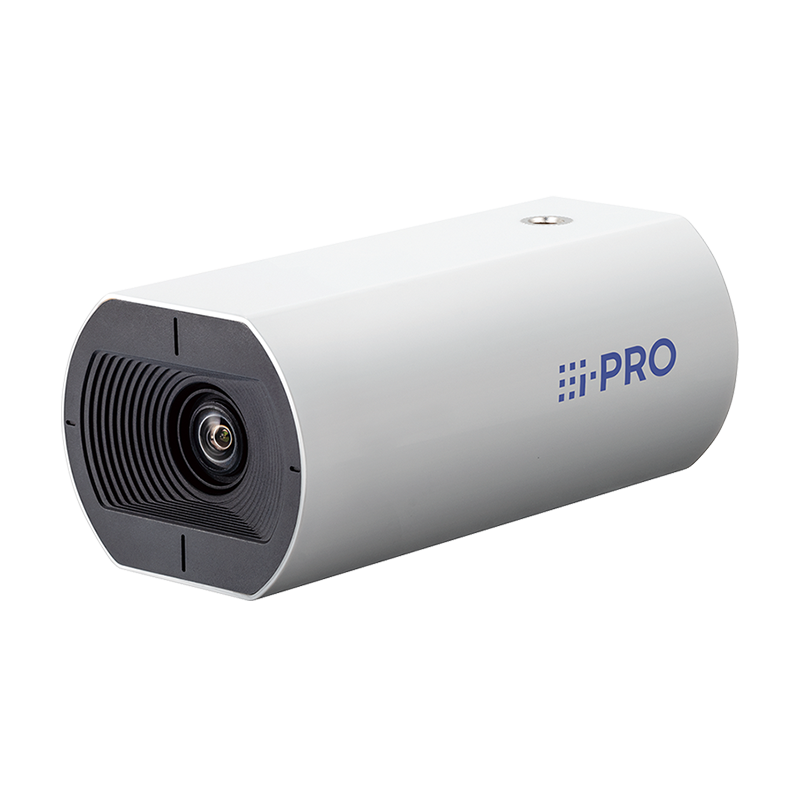

New U-series compact network camera with built-in microphone

2MP (1080p) Varifocal Lens Indoor Box Network Camera

  • 2MP(1080p) Indoor box camera
  • Bulit-in microphone
  • NDAA compliant
  • https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ia_intelligent_auto_mode.pnghttps://i-pro.com/products_and_solutions/sites/default/files/2022-04/easy_installation.jpghttps://i-pro.com/products_and_solutions/sites/default/files/2022-04/onvif_profile_s_g_t.jpghttps://i-pro.com/products_and_solutions/sites/default/files/2022-04/h265_h264_jpeg.jpg

    Camera

    COMPONENT SPECIFICATION
    Image Sensor Approx. 1/2.8 type CMOS image sensor
    Minimum Illumination Color : 0.1 lx, BW: 0.04 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11)
    Color : 0.006 lx, BW: 0.0025 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
    White Balance ATW1/ ATW2/ AWC
    Maximum shutter [30fps mode] Max. 1/10000 s to Max. 16/30 s
    [25fps mode] Max. 1/10000 s to Max. 16/25 s
    Intelligent Auto On / Off
    Super Dynamic On / Off, The level can be set in the range of 0 to 31.
    Dynamic Range Max.120 dB (Super Dynamic: On, Level: 31)
    Back Light Compensation/High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off
    (only when Super dynamic / Intelligent Auto: Off)
    Fog Compensation On/ Off, The level can be set in the range of 0 to 8.
    (only when Intelligent auto / auto contrast adjust: Off)
    Maximum gain (AGC) The level can be set in the range of 0 to 11.
    Color/BW (ICR) Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC)
    Digital Noise Reduction The level can be set in the range of 0 to 255.
    Video Motion Detection (VMD) On / Off, 4 areas available
    Scene Change Detection (SCD) On / Off, 1 areas available
    Privacy Zone On / Off, Up to 8 zones available
    Image Rotation 0 ° (Off) / 90 °/ 180 ° (Upside-down)/ 270 °
    Camera Title (OSD) On / Off, Up to 20 characters (alphanumeric characters, marks)

    Lens

    COMPONENT SPECIFICATION
    Optical zoom 2.5x (Motorized zoom / Motorized focus)
    Extra optical zoom 2.5x - 3.8x (when resolution is 1280x720)
    Focal length 2.9 mm – 7.3 mm{1/8inches-9/32inches}
    Angular Field of View [16 : 9 mode]
    Horizontal : 43° (TELE) – 100° (WIDE), Vertical : 24° (TELE) – 56° (WIDE)
    [ 4 : 3 mode]
    Horizontal : 32° (TELE) – 74° (WIDE), Vertical : 24° (TELE) – 56° (WIDE)
    Maximum Aperture Ratio 1 : 2.0 (WIDE) – 1 : 3.0(TELE)
    Focus Range 1 m {39-3/8 inches} – ∞

    DORI

    COMPONENT SPECIFICATION
    Detect (25ppm / 8ppf) Wide: 32.2 m /105.7 ft, Tele: 97.5 m / 319.8 ft
    Observe (62.5ppm / 19ppf) Wide: 12.9 m / 42.3 ft, Tele: 39.0 m / 127.9 ft
    Recognize (125ppm / 38ppf) Wide: 6.4 m / 21.1 ft, Tele: 19.5 m / 64.0 ft
    Identify (250ppm / 76ppf) Wide: 3.2 m / 10.6 ft, Tele: 9.7 m / 32.0 ft

    Adjusting Angle

    COMPONENT SPECIFICATION
    Adjusting Angle -

    Browser GUI

    COMPONENT SPECIFICATION
    GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian,
    Chinese, Japanese
    Browser Microsoft Edge, Firefox, Google Chrome *1

    Network

    COMPONENT SPECIFICATION
    Network IF 10Base-T / 100Base-TX, RJ45 connector
    Resolution H.265/H.264 [16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180
    [ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA
    H.265/ H.264 [Transmission Mode]
    Constant bit rate / VBR / Frame rate / Best effort
    [Transmission Type]
    Unicast / Multicast
    [Max. frame rate for each stream]
    Stream(1) : 1920x1080(30fps) / 1280x720(30fps) / 1600x1200(30fps)
    Stream(2) : 640x360(30fps) / 1280x720(30fps) / 640x480(30fps)
    Stream(3) : Off / Off / Off
    JPEG(1) : 1920x1080(1fps) / 1920x1080(1fps) / 1600x1200(1fps)
    JPEG(2) : 1280x720(1fps) / 1280x720(1fps) / 1280x960(1fps)
    JPEG [Image Quality]
    10 steps
    Smart Coding GOP(Group of pictures) control:
    On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off
    * Frame rate control and Advanced are only available with H.265.
    AUTO VIQS: On/ Off
    * AUTO VIQS will be automatically Off when Audio is On
    Audio Compression G.726(ADPCM)32 kbps/16 kbps,
    G.711 64 kbps,
    AAC-LC  64kbps/96kbps/128kbps *2
    Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP,SNMPv1/v2/v3,
    DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP
    IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP,
    DHCP,DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP,
    IEEE 802.1X, DiffServ, MQTT, LLDP
    No. of Simultaneous Users Up to 14 users (Depends on network conditions)
    Secure Device Certificate GlobalSign® pre-installed, HTTPS,
    User authentication, Digest authentication, Host authentication,
    IEEE802.1X, System log, Image transmission log, Brute-force protection
    SDXC/SDHC/SD Memory Card *3 H.265/H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC
    Compatible SDXC/SDHC/SD Memory Card :
    microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
    microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
    microSD memory card: 2 GB
    Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals
    ONVIF® Profile G / S / T

    Alarm

    COMPONENT SPECIFICATION
    Alarm Source VMD alarm, SCD alarm, Command alarm
    Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification,
    HTTP alarm notification Indication on browser,
    TCP alarm notification output

    General

    COMPONENT SPECIFICATION
    Safety UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
    EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
    Power Source and Power Consumption PoE (IEEE802.3af compliant):
    DC48 V 90 mA, Approx. 4.3 W (Class 2 device)
    Ambient Operating Temperature -10 °C to +50 °C (+14 °F to +122 °F)
    {Power On range: 0 °C to +50 °C (+32°F to +122 °F)}
    Ambient Operating Humidity 10 to 90 % (no condensation)
    Dimensions *Installing using the base bracket 59 mm (W) x 49 mm (H) x 116 mm (D)
    {2-5/16 inches (W) x 1-15/16 inches (H) x 4-9/16 inches (D)}
    (excluding side cover)
    Mass (approx.) Approx. 165 g { 0.36 lbs.}
    Finish Main body : PC / ABS resin, i-PRO white
