WV-U1542LA

Liên hệ

Loại sản phẩm: Camera giám sát

Hãng sản xuất: iPRO

Mô tả WV-U1542LA

New U-series compact network camera with enhanced functions and affordability

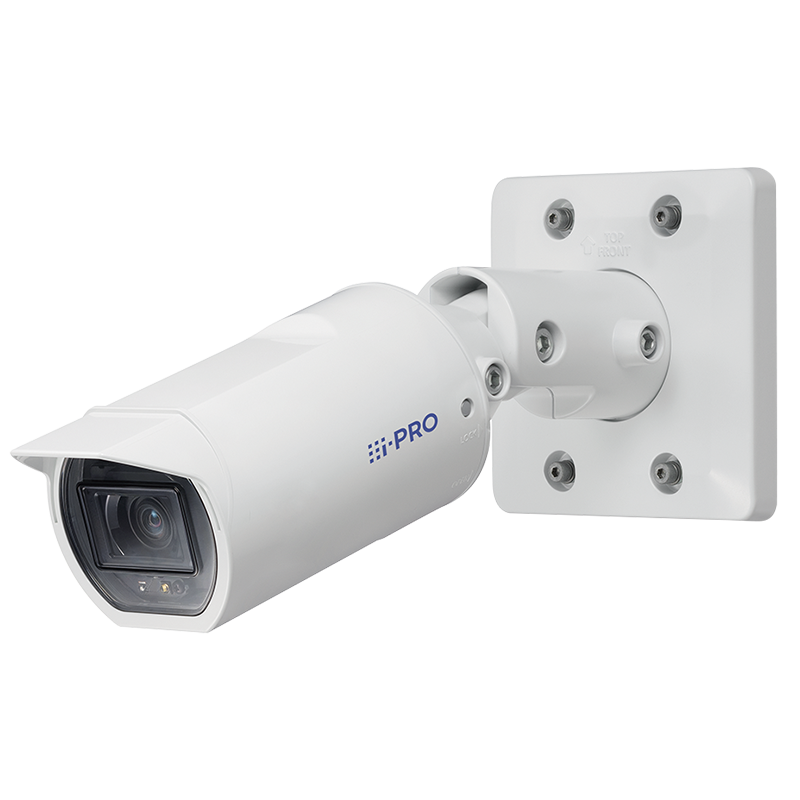

4MP Varifocal Lens Outdoor Bullet Network Camera

  • 2688×1520 pixel image up to 30fps
  • 2.5x built-in motorized zoom and motorized focus lens
  • iA (intelligent Auto)
  • Super Dynamic 102dB
  • Color night vision (0.019 to 0.3 lx)
  • H.265 Smart Coding
  • Corridor mode (90 degrees or 270 degrees in image rotation)
  • Built-in IR LED
  • NDAA Compliant
  • https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ia_intelligent_auto_mode.pnghttps://i-pro.com/products_and_solutions/sites/default/files/2022-04/h265_h264_jpeg.jpghttps://i-pro.com/products_and_solutions/sites/default/files/2022-04/ir_led.jpghttps://i-pro.com/products_and_solutions/sites/default/files/2022-04/ip66_standard.jpghttps://i-pro.com/products_and_solutions/sites/default/files/2022-04/onvif_profile_s_g_t.jpghttps://i-pro.com/products_and_solutions/sites/default/files/2022-04/easy_installation.jpg
  • Camera
  • COMPONENT SPECIFICATION
    Image Sensor Approx. 1/2.7 type CMOS image sensor
    Minimum Illumination Color : 0.3 lx, BW: 0.12 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11)
    BW : 0 lx {0 footcandle} (50IRE, F2.0, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit)
    Color : 0.019 lx, BW: 0.0075 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
    White Balance ATW1/ATW2/AWC
    Maximum shutter [30fps mode] Max. 1/10000 s to Max. 16/30 s
    [25fps mode] Max. 1/10000 s to Max. 16/25 s
    AI Intelligent Auto On / Off
    Super Dynamic On / Off, the level can be set in the range of 0 to 31.
    Dynamic Range Max.102 dB (Super Dynamic: On, Level: 31)
    Adaptive Black Stretch
    Back Light Compensation/High Light Compensation BLC/ HLC/ Off (only when Super Dynamic/ Intelligent auto: Off)
    Fog Compensation On / Off, The level can be set in the range of 0 to 8.
    (only when Intelligent auto / auto contrast adjust: Off)
    Maximum Gain The level can be set in the range of 0 to 11.
    Color/BW (ICR) Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)
    IR LED Light High/ Middle/ Low/ Off
    Maximum irradiation distance: 20 m {Approx. 65 ft}
    Digital Noise Reduction (DNR) The level can be set in the range of 0 to 255.
    Video Motion Detection (VMD) On / Off, 4 areas available
    Scene Change Detection On / Off, 1 area available
    Privacy Zone On / Off, Up to 8 zones available
    Image Rotation 0 ° (Off) / 90 ° / 180 ° (Upside-down) / 270 °
    Camera Title (OSD) On / Off Up to 20 characters (alphanumeric characters, marks)

    Lens

    COMPONENT SPECIFICATION
    Focal Length 2.9 mm – 7.3 mm {1/8inches-9/32inches}
    Optical Zoom 2.5x (Motorized zoom / Motorized focus)
    Extra optical zoom 2.5x - 3.3x (when resolution is 1920x1080)
    Digital (Electronic) Zoom Choose from 3 levels of x1, x2, x4
    Angular Field of View [16 : 9 mode] *[4:3 mode] is not supported.
    Horizontal : 44° (TELE) – 103° (WIDE), Vertical : 25° (TELE) – 57° (WIDE)
    Maximum Aperture Ratio 1 : 2.0 (WIDE) – 1 : 3.0(TELE)
    Focus Range 1 m {39-3/8 inches} – ∞

    DORI

    COMPONENT SPECIFICATION
    Detect (25ppm / 8ft) Wide: 40.7 m / 133.6 ft, Tele: 126.7 m / 415.8 ft
    Observe (62.5ppm / 19ft) Wide: 16.3 m / 53.4 ft, Tele: 50.7 m / 166.3 ft
    Recognize (125ppm / 38ft) Wide: 8.1 m / 26.7 ft, Tele: 25.3 m / 83.2 ft
    Identify (250ppm / 76ft) Wide: 4.1 m / 13.4 ft, Tele: 12.7 m / 41.6 ft

    Adjusting Angle

    COMPONENT SPECIFICATION
    Ceiling Mounting Horizontal: ±180 ° (Adjust by horizontal (PAN) angle)
    Vertical : 0 ° to 100 ° (Adjust by vertical (TILT) angle)
    Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle)
    Wall Mounting Horizontal: ±100 ° (Adjust by vertical (TILT) angle)*
    Vertical : ±100 ° (Adjust by vertical (TILT) angle)*
    Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle)
    *You can change between horizontal and vertical angels by adjusting the horizontal (PAN) angle.

    Browser GUI

    COMPONENT SPECIFICATION
    Camera Control Brightness
    GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

    Network

    COMPONENT SPECIFICATION
    Network IF 10Base-T / 100Base-TX, RJ45 connector
    Resolution H.265/ H.264/JPEG (MJPEG) [16:9 mode(2688x1520 30fps mode)], [16:9 mode(2688x1520 25fps mode)]
    2688×1520, 1920×1080, 640×360, 320×180
    [16:9 mode(30fps mode)], [16:9 mode(25fps mode)]
    2560×1440, 1920×1080, 640×360, 320×180
    *[4:3 mode] is not supported.
    H.265/ H.264 [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort
    [Transmission Type] Unicast / Multicast
    [Max.frame rate for each stream]
    Stream(1) : 2688x1520(30fps) / 2560x1440(30fps) / 1920x1080(30fps)
    Stream(2) : Off / 640x360(30fps) / 1920x1080(30fps)
    Stream(3) : Off / Off / 640x360(10fps)
    JPEG(1) : 2560x1440(1fps) / 2560x1440(1fps) / 2560x1440(1fps)
    JPEG(2) : 1920x1080(1fps) / 1920x1080(1fps) / 1920x1080(1fps)
    JPEG Image Quality : 10 steps
    Smart Coding GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid)/ On(Low)/ Off
    *Frame rate control and Advanced are only available with H.265.
    AUTO VIQS: On/ Off
    Audio Compression
    Audio Transmission Mode
    Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP
    IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP
    No. of Simultaneous Users Up to 14 users (Depends on network conditions)
    Secure Device Certificate GlobalSign® pre-installed, User authentication,Host authentication, HTTPS, 802.1X Support, Data encryption
    SDXC/SDHC/SD Memory Card (Option) H.265/H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC
    Compatible SDXC/SDHC/SD Memory Card :
    microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
    microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
    microSD memory card: 2 GB
    Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals
    ONVIF Profile G / S / T

    Alarm

    COMPONENT SPECIFICATION
    Alarm Source (Alarm/Event) VMD alarm, SCD alarm, Command alarm
    Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification,
    HTTP alarm notification Indication on browser, TCP alarm notification output

    Input/Output

    COMPONENT SPECIFICATION
    Monitor Output (for Adjustment)
    Audio Input
    Audio Output
    External I/O Terminals (Cable)

    General

    COMPONENT SPECIFICATION
    Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
    EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
    Power Source and Power Consumption PoE (IEEE802.3af compliant) Device:
    DC48 V 150 mA, Approx. 7.2 W (Class 0 device)
    Ambient Operating Temperature -30 °C to +50 °C (-22 °F to +122 °F)
    {Power On range: -20 °C to +50 °C (-4°F to +122 °F)}
    Ambient Operating Humidity 10 to 100 % (no condensation)
    Anti-Condensation System Temish element
    Water and Dust Resistance IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant
    Shock Resistance IK10 (IEC 62262)
    Wind Resistance Up to 40 m/s {approx. 89 mph}
    Dimensions 112.5 mm (W) x 112.5 mm (H) x 262 mm (D)
    {4-7/16 inches(W) x 4-7/16 inches(H) x 10-5/16 inches(D)
    Mass (approx.) 860 g {1.90 lbs.}
    Finish Main body: Aluminum die cast/ PC resin, i-PRO white
    Outer fixing screws: Stainless steel (Corrosion-resistant treatment)
    Front cover: Polycarbonate resin, Clear
