WV-U2142LA

Liên hệ

Loại sản phẩm: Camera giám sát

Hãng sản xuất: iPRO

Mô tả WV-U2142LA

New U-series compact network camera with enhanced functions and affordability

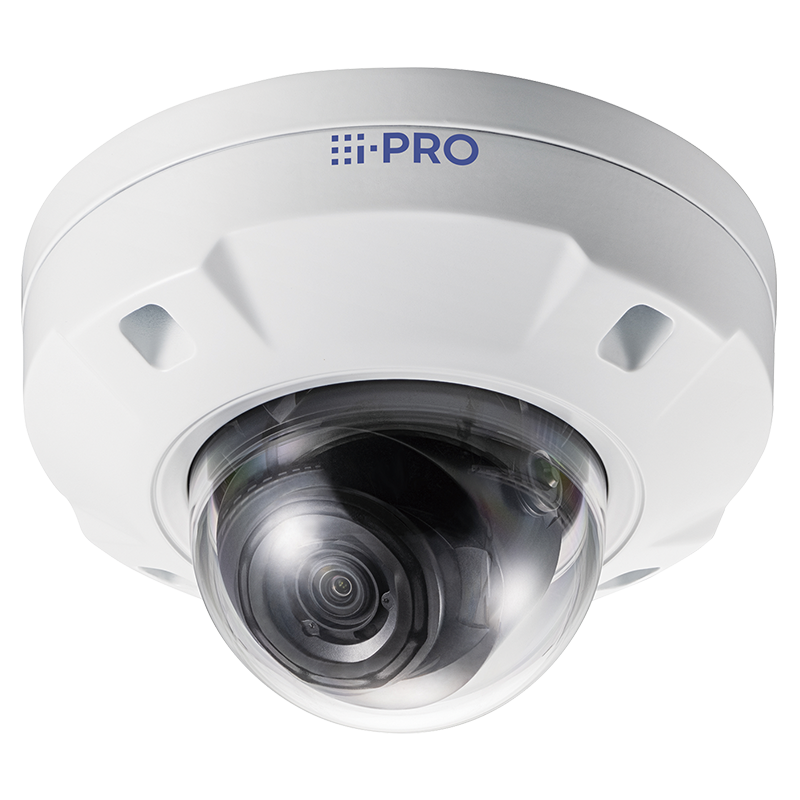

4MP Varifocal Lens Indoor Dome Network Camera

  • 2688×1520 pixel image up to 30fps
  • 2.5x built-in motorized zoom and motorized focus lens
  • iA (intelligent Auto)
  • Super Dynamic 102dB
  • Color night vision (0.019 to 0.3 lx)
  • H.265 Smart Coding
  • Corridor mode (90 degrees or 270 degrees in image rotation)
  • Built-in IR LED
  • NDAA Compliant
  • https://i-pro.com/products_and_solutions/sites/default/files/2022-04/ia_intelligent_auto_mode.pnghttps://i-pro.com/products_and_solutions/sites/default/files/2022-04/h265_h264_jpeg.jpghttps://i-pro.com/products_and_solutions/sites/default/files/2022-04/ir_led.jpghttps://i-pro.com/products_and_solutions/sites/default/files/2022-04/onvif_profile_s_g_t.jpghttps://i-pro.com/products_and_solutions/sites/default/files/2022-04/easy_installation.jpg

    Camera

    COMPONENT SPECIFICATION
    Image Sensor Approx. 1/2.7 type CMOS image sensor
    Minimum Illumination Color : 0.3 lx, BW : 0.12 lx (50IRE, F2.0, Maximum shutter : Off (1/30s), AGC : 11)
    BW : 0 lx (50IRE, F2.0, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit)
    Color : 0.019 lx, BW : 0.0075 lx (50IRE, F2.0, Maximum shutter : max. 16/30s, AGC : 11)
    White Balance AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
    Maximum Shutter Max. 1/10000 s to Max. 16/30 s
    Intelligent Auto On / Off
    Super Dynamic On / Off, the level can be set in the range of 0 to 31.
    Dynamic Range Max. 102 dB (Super Dynamic : On, Level: 31)
    Adaptive Black Stretch
    Back Light Compensation/High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off
    (only when Super dynamic / Intelligent Auto : Off)
    Fog Compensation On/ Off, The level can be set in the range of 0 to 8.
    (only when Intelligent auto / auto contrast adjust: Off)
    Maximum Gain (AGC) The level can be set in the range of 0 to 11.
    Color/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
    IR LED Light High / Middle / Low / Off, Maximum irradiation distance : 20 m {Approx. 65 ft}
    Digital Noise Reduction The level can be set in the range of 0 to 255.
    Video Motion Detection (VMD) On / Off, 4 areas available
    Scene Change Detection(SCD) On / Off, 1 areas available
    Privacy Zone On / Off (up to 8 zones available)
    Image Rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°
    Camera Title (OSD) On / Off, Up to 20 characters (alphanumeric characters, marks)

    Lens

    COMPONENT SPECIFICATION
    Focal Length 2.9 mm – 7.3 mm{1/8inches-9/32inches}
    Zoom ratio 2.5x Optical zoom (Motorized zoom / Motorized focus)
    3.3x FHD Extra Optical Zoom (when resolution is 1920x1080)
    Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
    Angular Field of View [16 : 9 mode] *[4:3 mode] is not supported.
    Horizontal : 44° (TELE) – 102° (WIDE)
    Vertical : 25° (TELE) – 57° (WIDE)
    Maximum Aperture Ratio 1 : 2.0 (WIDE) – 1 : 3.0 (TELE)
    Focusing Range 1 m {39-3/8 inches} – ∞

    DORI

    COMPONENT SPECIFICATION
    Detect (25ppm / 8ppf) Wide: 41.5 m /136.0 ft, Tele: 126.7 m / 415.8 ft
    Observe (62.5ppm / 19ppf) Wide: 16.6 m / 54.4 ft, Tele: 50.7 m / 166.3 ft
    Recognize (125ppm / 38ppf Wide: 8.3 m / 27.2 ft, Tele: 25.3 m / 83.2 ft
    Identify (250ppm / 76ppf) Wide: 4.1 m / 13.6 ft, Tele: 12.7 m / 41.6 ft

    Adjusting Angle

    COMPONENT SPECIFICATION
    Adjusting Angle Horizontal (PAN) angle: ±180°, Vertical (TILT) angle: -30 °– +85 °
    Azimuth (YAW) angle: ±100°

    Browser GUI

    COMPONENT SPECIFICATION
    Camera Control Brightness
    GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

    Network

    COMPONENT SPECIFICATION
    Network IF 10Base-T / 100Base-TX, RJ45 connector
    Resolution H.265/H.264 [16:9 mode(2688x1520 30fps mode)], [16:9 mode(2688x1520 25fps mode)]
    2688×1520, 1920×1080, 640×360, 320×180
    [16:9 mode(30fps mode)], [16:9 mode(25fps mode)]
    2560×1440, 1920×1080, 640×360, 320×180
    *[4:3 mode] is not supported.
    H.265/H.264 [Transmission Mode]
    Constant bit rate / VBR / Frame rate / Best effort
    [Transmission Type]
    Unicast / Multicast
    [Max. frame rate foreach stream]
    Stream(1)
    2688x1520(30fps)
    2560x1440(30fps)
    1920x1080(30fps)
    Stream(2)
    Off
    640x360(30fps)
    1920x1080(30fps)
    Stream(3)
    Off
    Off
    640x360(10fps)
    JPEG(1)
    2560x1440(1fps)
    2560x1440(1fps)
    2560x1440(1fps)
    JPEG(2)
    1920x1080(1fps)
    1920x1080(1fps)
    1920x1080(1fps)
    JPEG [Image Quality]
    10 steps
    Smart Coding GOP(Group of pictures) control:
    On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off
    *Frame rate control and Advanced are only available with H.265.
    AUTO VIQS: On/ Off
    Audio Compression -
    Audio Transmission Mode -
    Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3,
    DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP
    IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS,
    NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP
    No. of Simultaneous Users Up to 14 users (Depends on network conditions)
    SDXC/SDHC/SD Memory Card (Option) H.265/H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC
    Compatible SDXC/SDHC/SD Memory Card :
    microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
    microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
    microSD memory card: 2 GB
    Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals
    ONVIF® Profile G / S / T

    Alarm

    COMPONENT SPECIFICATION
    Alarm Source VMD alarm, SCD alarm, Command alarm
    Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification,
    HTTP alarm notification Indication on browser, TCP alarm notification output

    Input/Output

    COMPONENT SPECIFICATION
    Monitor Output (for Adjustment) -
    Audio input -
    Audio Output -
    External I/O Terminals -

    General

    COMPONENT SPECIFICATION
    Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
    EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
    Power Source and Power Consumption PoE (IEEE802.3af compliant) Device :
    DC48 V 135 mA, Approx. 6.5 W (Class 0 device)
    Ambient Operating Temperature -10 °C to +50 °C (+14 °F to +122 °F)
    {Power On range: 0 °C to +50 °C (+32°F to +122 °F)}
    Ambient Operating Humidity 10 to 90 % (no condensation)
    Dimensions ø129.5 mm x 101 mm (H) {ø5-3/32 inches x 3-31/32 inches (H)}
    Dome radius 40 mm {1-9/16 inches}
    Mass (Approx.) Approx. 350 g {0.77 lbs}
    Finish Main body : ABS resin, i-PRO white Dome section : Acrylic resin, Clear
