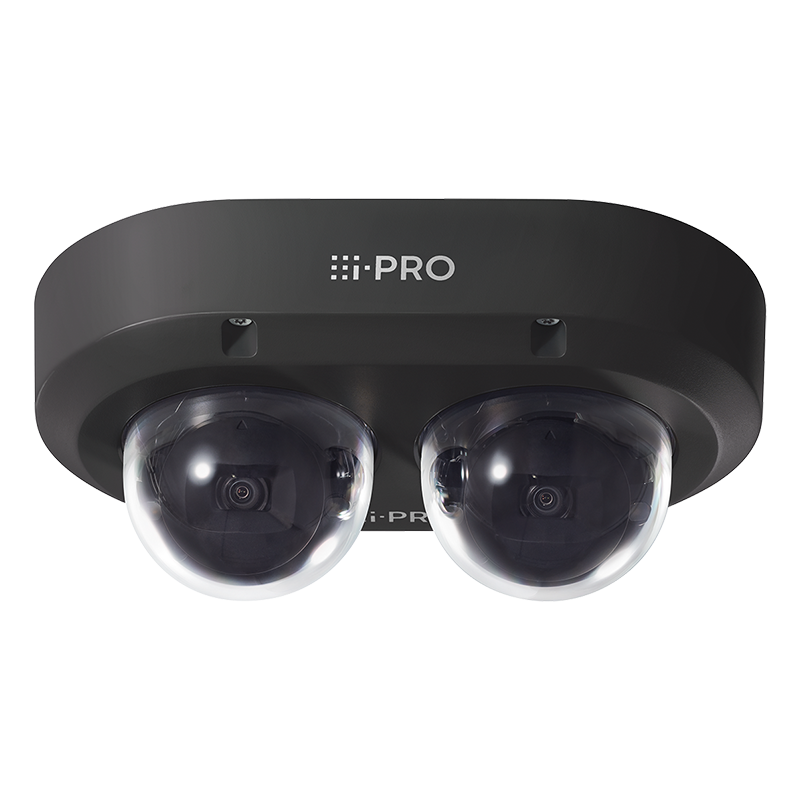

2 x 4MP IR Outdoor Multi-directional Network Camera
COMPONENT | SPECIFICATION |
---|---|
Image Sensor | 2x 1/2.7 type CMOS image sensor |
Minimum Illumination | Color : 0.21 lx (30IRE, F2.0, 1/30 s) Color : 0.3 lx (50IRE, F2.0, 1/30 s) BW : 0.12 lx {50IRE, F2.0,1/30 s} BW : 0 lx {50IRE, F2.0, 1/30 s with IR LED} |
White Balance | ATW1/ ATW2/ AWC |
Maximum shutter | 30 fps mode: Max.1/10000s to Max.16/30s 25 fps mode: Max.1/10000s to Max.16/25s |
Intelligent Auto | On / Off |
Super Dynamic | On / Off, The level can be set in the range of 0 to 31. |
Dynamic Range | 108 dB max. (Super Dynamic: On, Level: 31) |
Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
Back Light Compensation/High Light Compensation | BLC/ HLC/ Off The level can be set in the range of 0 to 31. (only when Super Dynamic/ Intelligent Auto: Off) |
Fog Compensation | On/ Off The level can be set in the range of 0 to 8. (only when Intelligent Auto/ Auto contrast adjust: Off) |
Maximum Gain (AGC) | The level can be set in the range of 0 to 11. |
Color/BW (ICR) | Off/On(IR Light Off)/On(IR Light On)/Auto1(IR Light Off)/Auto2(IR Light On)/ Auto3(SCC) |
IR LED Light | High/Middle/Low/Off Maximum irradiation distance : 40 m {Approx. 131 ft} (30IRE)* 30 m {Approx. 99 ft} (50IRE) * Converted value |
Digital Noise Reduction | The level can be set in the range of 0 to 255. |
Video Motion Detection (VMD) | On / Off, 4 areas available |
Scene Change Detection (SCD) | On / Off, 1 areas available |
Audio Detection | On/Off |
AI Sound Classification | - |
AI Analytics | - |
Privacy Zone | On/ Off (up to 8 zones available) |
VIQS | On / Off, Up to 8 zones available |
Image Rotation | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
Camera Title (OSD) | On/ Off, Up to 40 characters, Up to 2 Lines (alphanumeric characters, marks) |
Focus Adjustment | Auto focus |
COMPONENT | SPECIFICATION |
---|---|
Optical zoom | 2.5x (Motorized zoom / Motorized focus) |
Extra zoom | max 10.5x (when resolution is 640 x 360) |
Focal length | 2.9 mm{1/8 inches} – 7.3 mm{1/4 inches} |
Angular Field of View | Horizontal:43 ° (TELE)-100°(WIDE) Vertical:24 ° (TELE) - 56°(WIDE) |
Maximum Aperture Ratio | 1:2.0(WIDE) - 1:3.0(TELE) |
Focus range | 1 m {3.28 ft} – ∞ |
COMPONENT | SPECIFICATION |
---|---|
Detect (25ppm / 8ppf) | Wide: 45.1 m / 148 ft, Tele: 136.5 m / 447.8 ft |
Observe (62.5ppm / 19ppf) | Wide: 18.0 m / 59.2 ft, Tele: 54.6 m / 179.1 ft |
Recognize (125ppm / 38ppf) | Wide: 9.0 m / 29.6 ft, Tele: 27.3 m / 89.6 ft |
Identify (250ppm / 76ppf) | Wide: 4.5 m / 14.8 ft, Tele: 13.6 m / 44.8 ft |
COMPONENT | SPECIFICATION |
---|---|
System on Chip (SoC) | Ambarella CV22 |
COMPONENT | SPECIFICATION |
---|---|
Adjusting Angle | Camera 1, 2: Horizontal: -50° to +230° (Adjust by horizontal (PAN) angle) Vertical: +10° to +105° (Adjust by vertical (TILT) angle) Yaw: ±90° (Adjust by azimuth (YAW) angle) |
COMPONENT | SPECIFICATION |
---|---|
Camera Control | Brightness, AUX On / Off |
Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
Browser | Microsoft Edge, Firefox, Google Chrome *1 |
COMPONENT | SPECIFICATION |
---|---|
Network IF | 10BASE-T/100BASE-TX/1000BASE-T, RJ45 connector |
Resolution H.265/ H.264/ JPEG (MJPEG) | [16:9 mode] 2688 x 1520 / 2560x1440 / 1920 x 1080 / 1280 x 720 / 640×360/320×180 |
H.265/H.264 | [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast |
JPEG | [Image Quality] 10 steps |
Smart Coding | GOP(Group of pictures) control : Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/Advanced (Fixed GOP 60 seconds with 1 second Key frame)/Frame rate control (Variable GOP 4s-16s with frame rate control) *Advanced and Frame rate control are only available with H.265. Auto VIQS : On/Off |
Audio Compression | G.726(ADPCM)32 kbps/16 kbps, G.711 64 kbps, AAC-LC 64kbps/96kbps/128kbps *2 |
Audio Transmission Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, MQTT |
No. of Simultaneous Users | 24 (Number of sessions that can connect to cameras at the same time) |
Secure | FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed, HTTPS, User authentication, Digest authentication, Host authentication, IEEE802.1X, System log, Image transmission log, Brute-force protection, Alteration detection |
SDXC/SDHC/SD Memory Card | microSDXC memory card:64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card:4 GB, 8 GB, 16 GB, 32 GB microSD memory card :2 GB |
Mobile Terminal Compatibility | iPad / iPhone (iOS 8.0 or later), AndroidTM terminals |
ONVIF® Profile | G / S / T |
COMPONENT | SPECIFICATION |
---|---|
Alarm Source | 3 terminals input, VMD alarm, SCD alarm, Command alarm, Audio detection alarm |
Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output |
COMPONENT | SPECIFICATION |
---|---|
Monitor Output (for Adjustment) | - |
Audio input *3 | ø3.5 mm stereo mini jack For microphone input : Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance : Approx. 2 kΩ (unbalanced) Supply voltage : 2.4 V ±0.5 V For line input : Input level: Approx. –10 dBV |
Audio Output *3 | ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance: Approx. 600 Ω (unbalanced) Output level: –20 dBV |
External I/O Terminals *3 | ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) ALARM IN 3 (Alarm input 3/ ALARM OUT /AUX OUT) (x1) |
COMPONENT | SPECIFICATION |
---|---|
Safety | UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 |
EMC | FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035 |
Power Source and Power Consumption | PoE+ (IEEE802.3at compliant) : DC 54 V : 350 mA/Approx. 18.9 W (Class 4 device) |
Ambient Operating Temperature | –40 °C to +60 °C* {–40 °F to 140 °F}(Power On range: –20 °C to +60 °C {–4 °F to 140 °F}) Maximum temperature according to NEMA TS 2 (2.2.7) : 74℃(165℉) *When using with the IR LED light constantly lit, the upper limit of the operating temperature range is +50 °C {+122 °F}. |
Ambient Operating Humidity | 10 % to 100 % (no condensation) |
Anti-Condensation System | Temish element |
Water and Dust Resistance | IP67/IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant |
Shock Resistance | IK10 (IEC 62262) |
Other standard support | NEMA TS 2 (2.2.7-2.2.9) |
Dimensions | When using the attachment plate only: 250 mm(D)× 150 mm (W) × 105 mm (H) {9-27/32" inches (D) ×5-29/32 inches (W) ×4-1/8 inches (H)} |
Mass (approx.) | Approx. 1.8 kg |
Finish | Main body: Aluminum die cast, Black Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Dome cover: PC resin, Clear |
