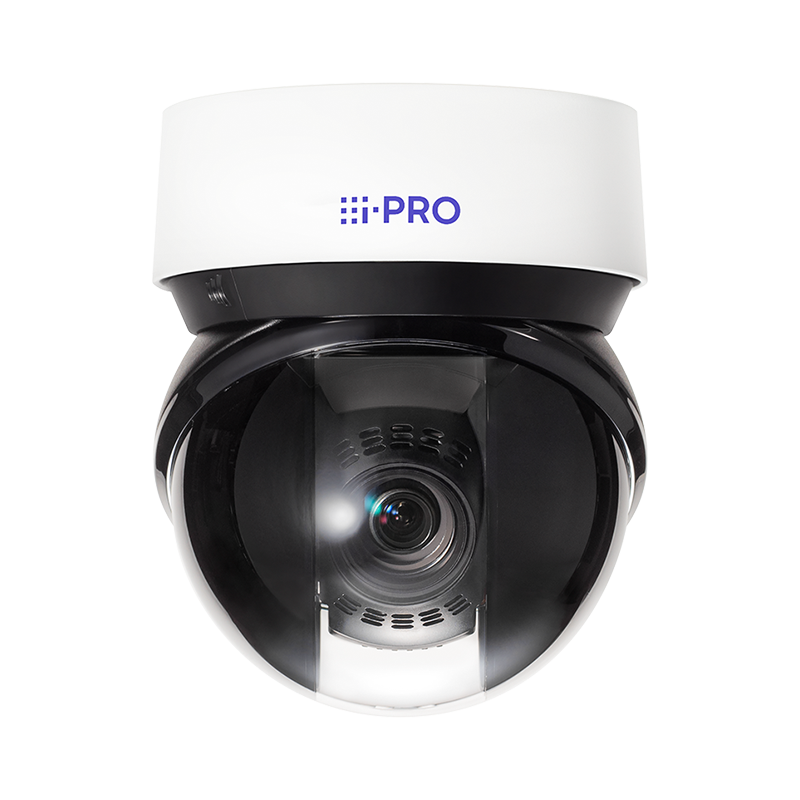

Rapid PTZ camera with AI engine and IR-LED

2MP Outdoor 40x PTZ Network Camera with AI engine

Coming Soon

• 2MP 40x PTZ camera
• Innovative New Form Factor PTZ
• Up to 2 Edge AI analytic apps
• AI auto tracking
• Built-in IR-LED (250m/820ft)
• High speed Pan/Tilt drive (Pan: 700deg./s, Tilt: 500deg./s)
• Heavy salt damage resistance specifications (ISO 14993 compliant)
• IP66, IK10 certified
• Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
• NDAA Compliant
•

  Camera

  COMPONENT	SPECIFICATION
  Image Sensor	Approx. 1/2.8 type CMOS image sensor
  Scanning Area	5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)}
  Minimum Illumination	Color : 0.011 lx (30IRE, F1.6, 1/30s) Color : 0.015 lx (50IRE, F1.6, 1/30s) BW : 0.006lx (50IRE, F1.6, 1/30s) BW : 0 lx (50IRE, F1.6, 1/30s with IR LED)
  White Balance	ATW1 / ATW2 / AWC
  Shutter Speed	[60fps mode] 1/60 Fix to 1/10000 Fix [50fps mode] 1/50 Fix to 1/10000 Fix
  Maximum shutter	60 fps/30 fps/15 fps mode: Max.1/4000s to Max.16/30s 50 fps/25 fps/12.5 fps mode: Max.1/4000s to Max.16/25s
  Intelligent Auto	On / Off
  Super Dynamic	On / Off, The level can be set in the range of 0 to 31.
  Dynamic Range	Max.144 dB (Super Dynamic : On, Level 31)
  Adaptive Black Stretch	The level can be set in the range of 0 to 255.
  Back Light Compensation/ High Light Compensation	BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31 (only when Super dynamic / Intelligent Auto :Off)
  Fog Compensation	On / Off, The level can be set in the range of 0 to 8 (only when Intelligent auto / auto contrast adjust : Off)
  Maximum Gain (AGC)	The level can be set in the range of 0 to 11.
  Color/BW (ICR)	Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
  IR LED Light	High/ Middle/ Low/ Off Maximum irradiation distance: 350 m {Approx. 1150 ft} (30IRE)* 250 m {Approx. 820 ft} (50IRE) *Converted value
  Digital Noise Reduction	The level can be set in the range of 0 to 255.
  Video Motion Detection (VMD)	On / Off, 4 areas available
  Scene Change Detection (SCD)	On / Off, 1 areas available
  Audio Detection	On / Off
  AI Sound Classification	Gunshot, Yell, Vehicle horn, Glass break
  AI Analytics	AI Video Motion Detection, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Non mask Detection, AI Occupancy Detection, AI Scene Change Detection For details : https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software 3rd party applications are also available. https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list
  Privacy Zone	On / Off, Up to 32 zones available
  VIQS	On / Off, Up to 8 zones available
  Image Stabilizer	On / Off (Built-in gyro sensor)
  Camera Title (OSD)	On / Off, Up to 40 characters (alphanumeric characters, marks)

  Lens

  COMPONENT	SPECIFICATION
  Optical zoom	40x (Motorized zoom / Motorized Focus)
  Extra zoom	Max.60x (40x-60x when resolution is 1280x720)
  Focal length	4.25 - 170 mm {5/32 inches - 6-11/16 inches}
  Angular Field of View	[16 : 9 mode] Horizontal : 2.0° (TELE) – 65° (WIDE), Vertical : 1.2° (TELE) – 39° (WIDE)(TBD) [ 4 : 3 mode] Horizontal : 1.5° (TELE) – 51° (WIDE), Vertical : 1.2° (TELE) – 39° (WIDE)(TBD)
  Maximum Aperture Ratio	1 : 1.6 (WIDE) – 1 : 4.95 (TELE)
  Focus range	3.0 m {118-1/8 inches} –∞
  Aperture range	F1.6 - close

  DORI

  COMPONENT	SPECIFICATION
  Detect (25ppm / 8ppf)	Wide: 60.3 m / 197.8 ft, Tele: 2199.9 m / 7217.6 ft
  Observe (62.5ppm / 19ppf)	Wide: 24.1 m / 79.1 ft , Tele: 880.0 m / 2887.1 ft
  Recognize (125ppm / 38ppf)	Wide: 12.1 m / 39.6 ft, Tele: 440.0 m / 1443.5 ft
  Identify (250ppm / 76ppf)	Wide: 6.0 m / 19.8 ft, Tele: 220.0 m / 721.8 ft

  System on Chip (SoC)

  COMPONENT	SPECIFICATION
  System on Chip (SoC)	Ambarella CV25m

  Adjusting Angle

  COMPONENT	SPECIFICATION
  Adjusting Angle	Horizontal : 360° Endless Panning, TILT : -20° to +90°, Yaw : 0°

  Pan /tilt

  COMPONENT	SPECIFICATION
  Panning Range	360° Endless Panning
  Panning Speed	Manual: Approx. 0.065°/s – 150°/s, Preset: Up to approx. 700°/s
  Tilting Range	Operational -20° – +90°
  Tilting Speed	Manual: Approx. 0.065°/s –150°/s, Preset: Up to approx. 500°/s
  Preset Positions	256 positions
  Auto Mode	Auto track/ Auto pan/ Preset sequence/ Patrol
  Self Return	10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min
  Active ClearSight	Yes

  Browser GUI

  COMPONENT	SPECIFICATION
  GUI / Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
  Browser *1	Microsoft Edge, Firefox, Google Chrome

  Network

  COMPONENT	SPECIFICATION
  Network IF	10Base-T / 100Base-TX, RJ45 connector
  Resolution H.265/ H.264/ JPEG (MJPEG)	[16:9 mode (60fps mode)],[16:9 mode (30fps mode)], [16:9 mode (50fps mode)],[16:9 mode (25fps mode)] 1920x1080, 1280x720, 640x360, 320x180 [4:3 mode (30 fps mode)], [4:3 mode (25 fps mode)] 1280x960, VGA, QVGA [4:3 mode (15 fps mode)], [4:3 mode (12.5 fps mode)] 2048x1536* , 1280x960, VGA, QVGA *Used bu super resolution techniques
  H.265/H.264 Transmission Mode/Type *2	[Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast
  JPEG	[Image Quality] 10 steps
  Smart Coding	GOP (Group of pictures) control: Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/ Advanced(Fixed GOP 60s w/1s key-frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control) *Advanced and Frame rate control are only available with H.265. Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off
  Audio compression method *3	G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps AAC-LC*5 : 64 kbps / 96 kbps / 128 kbps
  Audio Transmission Mode	Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
  Supported Protocol	IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, MQTT, NTCIP
  No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
  Secure	FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed, HTTPS, User authentication, Digest authentication, Host authentication, IEEE802.1X, System log, Image transmission log, Brute-force protection, Alteration detection
  SDXC/SDHC/SD Memory Card (Option)	H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SDXC/SDHC/SD Memory Card : microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB microSD memory card : 2 GB
  Mobile Terminal Compatibility	iPad, iPhone (iOS 8.0 or later), Android™ terminals
  ONVIF® Profile	G / M / S / T

  Alarm

  COMPONENT	SPECIFICATION
  Alarm Source	3 terminals input, VMD alarm, Command alarm, Audio detection alarm
  Alarm Actions	SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output

  Input/Output

  COMPONENT	SPECIFICATION
  Audio Input *4	ø3.5 mm stereo mini jack Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : –51 dB to –38 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance : Approx. 2 kΩ (unbalanced) Supply voltage : 2.5 V ±0.5 V Input level : Approx. –10 dBV
  Audio Output *4	ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600Ω (unbalanced) Output level : –20 dBV
  External I/O Terminals *4	ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)

  General

  COMPONENT	SPECIFICATION
  Safety	UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
  EMC	FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035
  Other Standard	NEMA-TS2
  Power Source and Power Consumption	PoE++ (IEEE802.3bt), PoE++ DC54V: 850mA/Approx.45.9W (Class 6 device)
  Ambient Operating Temperature	-50 °C to +60 °C * (-58 °F to +140 °F)(PoE++) (Power On range : –30 °C to +60 °C {–22 °F to +140 °F})(TBD) * When using with the IR LED light constantly lit, the upper limit of the operating temperature range is +50°C {+122 °F}.
  Ambient Operating Humidity	10 to 100 % (no condensation)
  Water and Dust Resistance	IP66, IEC60529 measuring standard compatible, Type 4X(UL50E), NEMA 4X compliant
  Shock Resistance	IK10 (IEC 62262)
  Wind Resistance	Up to 40 m/s {approx. 89 mph}
  Dimensions	Maximum diameter:φ167mm × 205 mm (H){φ6-9/16 inches × 8-1/16 inches (H)} Dome radius SR 77.5 mm {SR 3-1/16 inches} (excluding an attachment for the conduit portion and protruding parts)
  Mass (approx.)	Approx. 3 kg (without attachment)
  Finish	Main body : Aluminum die cast (Heavy-salt damage resistance coating), i-PRO white Outer fixing screws : Stainless steel (Corrosion-resistant treatment) Dome cover: Polycarbonate resin, Clear
  Other	Tamper-resistant enclosure *5
